New 2025 Newmar Ventana 3507

Motor Home Class A - Diesel

Stock #ATONV3507

Sewell, NJ

Available to Order! Unit is NOT in Stock! Call to Order Yours Today!

Stock Image- Stroud Exterior
Stock Image- Barnet Paint Scheme
Stock Image- Camden Paint Scheme
Stock Image- Brighton Exterior
Stock Image- Palisades Interior
Stock Image- Saguaro Interior
Stock Image- Bermuda Glazed Maple Cabinetry
Stock Image- Glacier Glazed Maple Cabinetry
Stock Image- Newport Glazed Maple Cabinetry
Stock Image- Toffee Glazed Maple Cabinetry
Stock Image- Colors and Options May Vary
Stock Image- Colors and Options May Vary
Stock Image- Colors and Options May Vary
Stock Image- Colors and Options May Vary
Stock Image- Colors and Options May Vary
Stock Image- Colors and Options May Vary

1 of 23

+23

Sleeps 4
3 Slides
Rear Bedroom

36ft Long
31,000 lbs
Brighton, Palisades, Saguaro

See All Specs

Specifications

Sleeps	4	Slides	3
Length	35 ft 10 in	Ext Width	8 ft 6 in
Ext Height	12 ft 10 in	Int Height	6 ft 11 in
Interior Color	Brighton, Palisades, Saguaro	Exterior Color	Barnet, Camden, Stroud
Hitch Weight	10000 lbs	GVWR	38200 lbs
Dry Weight	31000 lbs	Cargo Capacity	7200 lbs
Fresh Water Capacity	105 gals	Grey Water Capacity	75 gals
Black Water Capacity	55 gals	Furnace BTU	35000 btu
Generator	8.0 kW Cummins Onan Diesel Quiet Series	Fuel Type	Diesel
Engine	Cummins L 8.9	Chassis	Freightliner XCR
Horsepower	380 hp	Fuel Capacity	100 gals
Wheelbase	212 in	Available Beds	King
Torque	1150 ft-lb	Refrigerator Type	Norcold with Stainless Steel Front
Refrigerator Size	10 cu ft	Convection Cooking	Yes
Cooktop Burners	3	Shower Size	40" x 32"
Number of Awnings	1	Axle Weight Front	14200 lbs
Axle Weight Rear	24000 lbs	LP Tank Capacity	32 gals
Water Heater Capacity	10 gal	Water Heater Type	Gas/Electric DSI
AC BTU	30000 btu	TV Info	LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K
Awning Info	Girard G2000 Power w/Wind Sensor, Remote, and LED Lights	Washer/Dryer Available	Yes
Gross Combined Weight	48200 lbs	Shower Type	Standard
Electrical Service	50 amp

Description

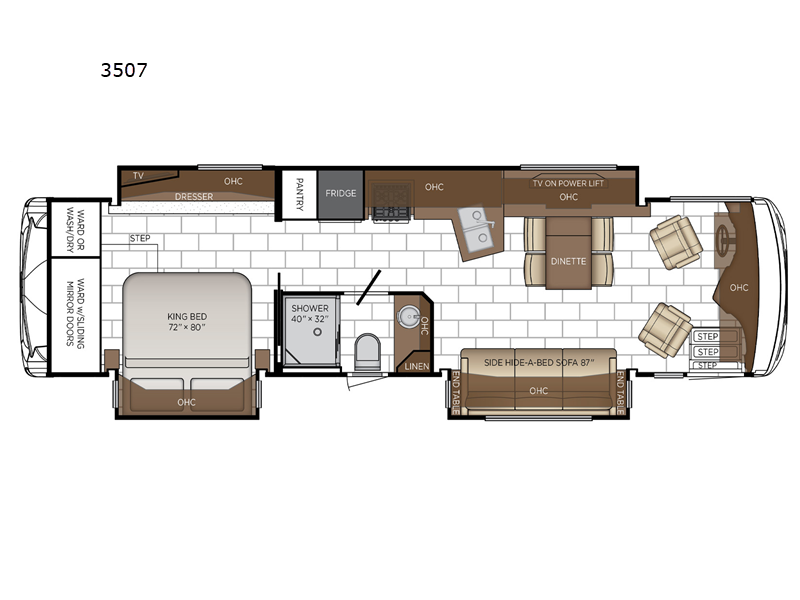

Newmar Ventana Class A diesel motorhome 3507 highlights:

Triple Slides
TV on Power Lift
Bedroom Dresser
10 Cu. Ft. Norcold Refrigerator
Full Bath

This coach is perfect for all your adventures across the state or country! Once you arrive at your destination, put out the Girard G2000 power awning and relax with a cold drink. There is a full bath inside if you need to clean up before dinner, and the chef will have everything they need with a three burner recessed gas cooktop, stainless steel convection microwave, and plenty of counter space. This model includes a spacious side hide-a-bed sofa across from the TV on power lift for movie nights, and there is a free-standing dinette with four chairs where you can dine at. You'll feel right at home in the rear private bedroom that includes a king bed slide out, an LED TV, plus a wardrobe with sliding mirror doors for all your clothes. There is even a wardrobe where you can add an optional washer and dryer!

Newmar's most flexible coach is found with the Ventana motorhome! The STAR foundation improves strength and durability, as well as a quieter and more stable ride than any other Class A diesel coach. The Freightliner chassis comes standard, or you can choose the optional Spartan chassis. Each model is constructed with gelcoat fiberglass exterior sidewalls and front and rear caps, along with Polar Pak R19 batten insulation in the roof so you can enjoy four seasons of fun. Some of the convenient cockpit features include an Xite dash radio with a Nav-N-Go navigation system, six-way power captain's seats, and the Mobileye lane tracking and lane departure system for added safety. You'll love the luxurious look of the porcelain tile floor and three stylish decor options, and each floorplan includes polished solid surface countertops in the kitchen, bath, and bedroom! The exterior is outfitted with the industry-exclusive Full-Paint Masterpiece Finish, Smart Level hydraulic leveling jacks, Silverstar ultra headlight bulbs, and an optional entertainment center!

Features

Standard Features

Exterior

Standard

Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
Convex Exterior Mirrors with Remote Control, Defrost and Turn Signal Indicators
Chrome Exterior Mirrors
Entrance Door with Automatic Step
Rear Hitch for Towing Car
Assist Handle at Entrance Door
Mud Flaps
Rear Protective Tow Guard with Stainless Steel Newmar Letters
Undercoating
Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
Stainless Steel Exterior Trim Pieces on Front Cap and Grill Area
Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell

Optional

Chrome Power Baggage Door Locks
Flag Pole Bracket
Rear Ladder
Storage Tray 26 X 91 Non-Power, Location Bay 2
Storage Tray 32 X 91 Non-Power, Location-Bay 2
Storage Tray 43 X 56 Non-Power, Location-Bay 3
Storage Tray 43 X 56 Non-Power, Location-Bay 4

Construction

Standard

Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
5/8" Foam Insulation Laminated in Sidewalls & Ceiling
Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
Polar Pak R19 Batten Insulation in Roof
Fiberglass Roof and Integrated Gutter Rail
Egress Door with Ladder System

Chassis

Standard

Aluminum Wheels
Cruise Control
Comfort Drive™ Steering With Adjustable Control
Manual Tilt and Telescope Steering Column with VIP Smart Wheel
Recessed Fuel Fills with Crossover to Fill from Either Side
Back-Up Alarm
Anti-Lock Braking System
Chassis Battery Disconnect
V-Ride Drive Axle Suspension on Freightliner Chassis
Glass Dash Instrument Panel
Dash Panel Optiview
Headlights Automatic High Beam
Mobile Eye Tracking and Lane Departure Warning System
Steering Wheel Nine Function Switch Pod in Center on Spartan Chassis
Valid Digital Glare Free Dash on Spartan Chassis
Freightliner® 380Hp on 35-38’ Floor Plans
Freightliner® Tag Axle 400Hp on 40-43’ Floor Plans
Tire Pressure Monitoring on Chassis

Optional

Spartan 380Hp on 35'-38'’ Floor Plans
Spartan Tag Axle 400Hp on 40-43’ Floor Plans
OnGuard Collision Mitigation Adaptive Cruise System with Adjustable Following Distance Control-Freightliner or Spartan

Mechanical and Electrical

Windows, Awnings, & Vents

Standard

Frameless Double-Pane Tinted Safety-Glass Windows
Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
Skylight Above Shower
Girard G2000 Power Side Awning with Wind Sensor, Remote Control & LED lights
Slideout Awning Covers
One Piece Tinted Windshield

Optional

Carefree Window Awning Pkg of (3), 1-Bedroom, 1-Off Door Side Livingroom, 1-Door Side Livingroom
Kitchen Window*
Two Nova Side Awnings
Bunk Windows*

Air Conditioning & Heating

Standard

Two-15M Penguin™ Heat Pump Air Conditioners
Three-15M Penguin Heat Pump Air Conditioner on 43’ Floor Plans
Propane Gas Furnace with Ducted Heat on 34’-40’ Floor Plans
Dash Heater and Air Conditioner
Chinook Dual Loop Heat with Continuous Hot Water on 43’ Floor Plans
Driver & Passenger Dash Overhead Ventilation System
Wall Mounted Sensors for Heating and Air Conditioning

Optional

Electric Radiant Heat Installed Below Main Floor Tile

Electrical

Standard

8.0 kW Cummins Onan® Diesel Quiet Series Generator
50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
Four 6-Volt House Batteries on Pullout Tray on 35'-40' Floor Plans
Eight 6-Volt House Batteries on Pullout Tray on 43' Floor Plans
Battery Disconnect Switch for House Battery
Automatic Generator Start on Low Battery or Temperature Setting
10 Watt Solar Panel to Charge Chassis Battery
2000 Watt Modified Sine Inverter on 35'-40' Floor Plans
2800 Watt Modified Sine Inverter on 43' Floor Plans
12 Volt Auxiliary Receptacle on Dashboard
Emergency Engine Start Switch
Engine Block Heater
Exterior Security Light on Doorside
Midship Side Turn Signals
LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
Lights in Exterior Storage Compartments
Manually Operated Hold-To-Run Slideout Switch
Cable TV Connection
Interior Courtesy Lights
USB Charger at Dinette & Bedroom Night Stand
USB Outlet at Dash for Drive Use
Wireless Charging Mat Built into Dash for Driver Use
Wireless Charging Mat Built into Passenger Console
Spare Fuses in Chassis and House Fuse Panels
Energy Management System
Multiplex Lighting Control System 10.1" in Center of Coach with Interior Lighting & HVAV Controls
Dimmable/Adjustable Reading Lights at Head of Bed
110 Volt Recept in Bed Overhead with Two Pass Through Ports
110V/USB Outlet at Head of Each Bunk Area*
12 Volt Recept Auxiliary on Dashboard
Power Rewind Reel with 33’ Cord*
Power Rewind Reel with 50’ Cord*
Connected Solutions App
Dash Radio, Cameras and Monitors to Power-up from both House Batteries Ignition

Optional

Solar Prep with Six Gauge Wire Ran from the Roof to the House Battery Compartment
Four Flexible 100 Watt Solar Panels on Roof
Transfer Switch with Surge Protector

Plumbing & Bath

Standard

Demand Water System
Sewage Holding-Tank Rinse
Water Heater Bypass System
Dometic® 321 China Bowl Stool or Macerator Stool*
Sentrel Acrylic Shower Walls with Glass Door
Water Filter for Entire Unit
Exterior Shower
Auto Fill Water Works Compartment
Power Water Hose Reel
Aqua Miser Shower System

Optional

Fold Down Shower Seat
Hot Water Line to Generator Area*

Interior

Cabinets & Furniture

Standard

Bermuda Glazed Maple Hardwood Face Frame Cabinets with Mitered Panel Flat Designer Doors- Matte Finish
Concealed Hinges on Cabinet Doors
Pullout Pantry Shelves*
Soft Close Cabinet Drawers
Drawer Slides Push to Release in Pantry
Drawers with Full Extension Ball Bearing Guides
Cooktop Cover Flush, Matching Material
Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
Polished Solid Surface Countertop in Bathroom and Bedroom
Desk with One Chair*
Dinette Booth Williamsburg Convertible*
Lifts on Bed Top
Passenger Seat Work Station
Ultrafabric Sofa and Driver/Passenger Seats
Driver Seat with Vibrator for Mobile Eye System
Driver/Passenger Seats with Six-Way Power, Power Lumbar and Footrest
Plush Pillow Top Mattress
Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
Mesh Cell Phone Holder at Each Bunk Bed*
Molded Silverware Divider Tray
Villa Comfort Fit Furniture

Optional

Glacier Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
Newport Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-Matte or High Gloss Finish
Bermuda Glazed Maple Hardwood Cabinets with Mitered Flat Designer Doors-High Gloss Finish
Mattress Air R5 Radius Corner
Buffet Dinette with Two Fixed and Two Folding Chairs
Combination Desk with Buffet Table, Two Fixed and Two Folding Chairs
Dinette Convertible with Two Fixed and Two Folding Chairs that Face to Window
Dinette Euro Booth with Two Table Leaves, Removable Table Leg and Two Folding Chairs
Two Recliners with Lampstand and Reading Lights
Powered Theater Seating 74”
Powered Theater Seating 84” with Reading Lights
Powered Theater Seating 87” with Reading Lights
Bunk Beds to Convert to Wardrobe
Bunk Bed Drop Down Over Driver and Passenger Seats to Windshield with Bunk Ladder

Appliances

Standard

Convection Stainless Steel Microwave with Three-Burner Recessed Gas Cooktop and Air Fryer Feature
All Electric, Cook Flush Mount Induction on 43’ Floor Plans
Air Horns
Norcold® 10 Cf. Refrigerator with Stainless Steel Refrigerator Front
Whirlpool® 19.7 Cf. on 43’ Floor Plans
Prep for Two-Piece Washer and Dryer
Fireplace in Living Area*
Water Heater 10 Gallon Gas/Electric with Direct Spark Ignition on 35’-40’ Floor Plans

Optional

Norcold® 15 Cf. Four-Door Refrigerator with Icemaker
Norcold® 15 Cf. Four-Door Refrigerator with Icemaker with Heated Water Line
Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank and Icemaker
Whirlpool® 11 Cf. Refrigerator with Two Extra Batteries, 22 gal. Propane Tank
Whirlpool® 19.7 Refrigerator with Two Extra 6 Volt Batteries and 22 gal. Propane Tank
Splendide Two-Piece Stacked Washer and Dryer
All Electric, Flush Mount Induction Cooktop, Whirlpool 19.7 Refrigerator, 4 Extra Batteries, 2800 Pure Sine Inverter
Hydronic Heat on 35’-40’ Floor Plans
Central Vacuum with Tool Kit
110 Volt Heat Pads for Holding Tanks
Dishwasher in a Drawer with Stainless Steel Front Below Cooktop
Electrical Prep for Freezer without Tray
Beverage Center with Wine Cooler and Stemware Rack
Fireplace

Interior

Standard

Designer Feature Ceiling
Tile Floor in Kitchen, Bathroom and Living Areas
Carpeting on Slideout Floors
MCD Window Shades
MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
Dash Panel Color Coordinated ABS
Decorative Wall Art
Inlayed Three Panel Design Interior Passage Doors
Interior Assist Handle at Main Entry Door
Power Stepwell Cover
Fitted with Round Corner Non-Quilted Bedspread with Accent Pillows
Removable Transport Pads for Under Slideout Rollers
Waste Basket in Kitchen Base Under Sink

Optional

Safe Located in Bedroom Wardrobe

Entertainment

Audio & Video

Standard

Samsung LED 4K TV in Living and Bedroom Areas(TV Sizes Vary Per Floor Plan)
Samsung 50” LED 4K TV on Televator in Living Area*
Dash Radio with Harman/JBL 180 Watt Sound System and Subwoofer
Xite Dash Radio with Apple CarPlay ®, 9” Dual Monitors with Nav-N-Go Navigation System
Bose® Soundbar Sound System
Bluetooth Microphone for Dash Radio
Rear-View Color Monitor System with Audio
Side-View Cameras Displayed on Rear-View Monitor Screen
Winegard Digital Crank-up TV Antenna
Satellite Dish Prep on Roof
Two Bedroom Radio Speakers
TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
High Definition Component Wiring
10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector

Optional

SiriusXM® Satellite Capability with Antenna (Does not include monthly subscription)*
Samsung® 43” 4K LED TV in Front Overhead
Exterior Entertainment Center in Sidewall with Samsung® 32” 4K LED TV and Bose® Soundbar
Exterior Entertainment Center in Sidewall with Samsung® 43” 4K LED TV and Bose® Soundbar
Exterior Entertainment Center in Storage Compartment with Samsung® 43” LED TV and Bose® Soundbar
Omniview NS360 Camera System*
Universal Remote Control
Universal Toll Module
Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
Two-19” Skyworth Monitors at Each Bunk*
WIFI Ranger Denali/Spruce LTE
WIFI System Everest with Aspen Interior Router
Winegard Automatic Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
Winegard Automatic Open Face SWM Satellite Dish-DIRECTV Std/HD
Winegard In-Motion Dome Satellite Dish-Std/HD, DIRECTV Std. and Bell Canada
Winegard Rayzar Automatic Digital TV Antenna

*Check with dealership on floorplan availability

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

A++ Experience
Jim was fantastic. Jim's knowledge, willingness to share, patience for a all of our questions was a pleasure. This is our first RV purchase and it was wonderful. I am very grateful for having the opportunity to work with Dylans and their team. I would highly recommend Dylan's RV center. This is a dream

Jane from Red Hook, NY
fair and accommodating
I am a fairly demanding, but fair person. I am also a bit OCD. With that being said, my experience with Dylan's was exactly as advertised (and researched) throughout my shopping, negotiating, and purchasing experience. The fact that we are/were dealing with COVID-19 during this whole process made this

Derrick from Egg Harbor Township, NJ
Wonderful Service!
I want to thank Korinne & Nat for the excellent service they provided on my 2021 Nexus Wraith RV. All of the warranty items and additional items we wanted installed were addressed quickly and without any issues. They were very easy to deal with and kept us informed of parts that needed to be delivered

Pat from West Islip, NY

We are here to help, call us at
856-228-0090 or Contact Us

We are here to help!

856-228-0090
Contact Us
$ Get Internet Price $

Dylan's RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @856-228-0090 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Newmar Ventana 3507

Why Do We Ask You For This Information?

Quick Links

Our Hours

RV Sales

RV Service

New 2025 Newmar Ventana 3507

3507 Floorplan

Specifications

Description

Features

Why Do We Ask You For This Information?
