Dynamax Isata 5 Motor Home Super C - Diesel RVs For Sale

Previous
Next
1 of 33

You will find yourself making up reasons to go on another trip with the Dynamx Isata 5 Super C diesel motorhomes! They have paired luxury living with a powerful Cummins 6.7L I6 turbo diesel engine and best in class towing with a Ram 5500 SLT chassis with factory 4-wheel drive.



The multiplex wiring has a touch screen command center, back-lit switch panels, and Bluetooth smart phone app control for easy use at the touch of a finger. An aluminum truss-structured roof comes with a one-piece, crowned fiberglass skin to protect you from the outdoor elements. Relax underneath the dual-pitch, armless awning with motion-activated retraction while gazing out at your beautiful surroundings.



You will enjoy a familiar and extremely comfortable trip behind the wheel of a Dynamax Isata 5 Super C diesel motorhome!

  • Specifications

    Sleeps 5
    Slides 1
    Length 31 ft 2 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Champagne, Carbon, Dusk

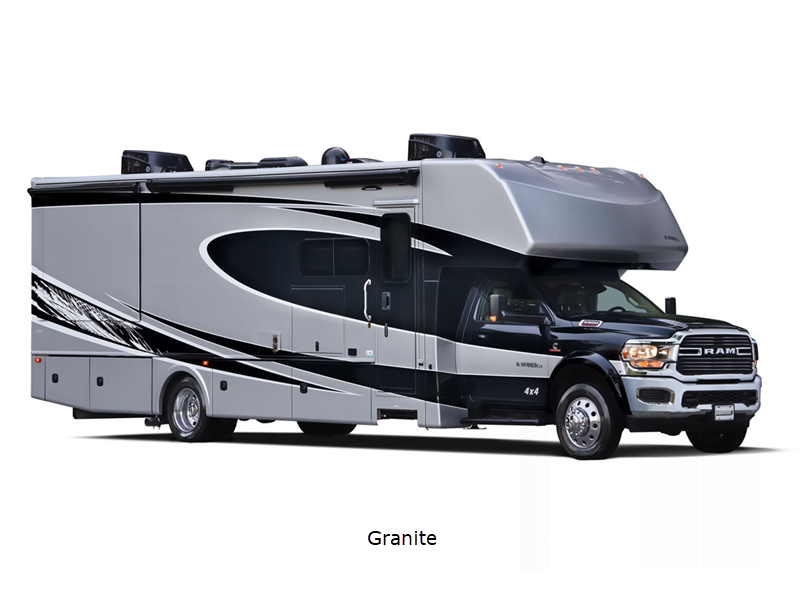

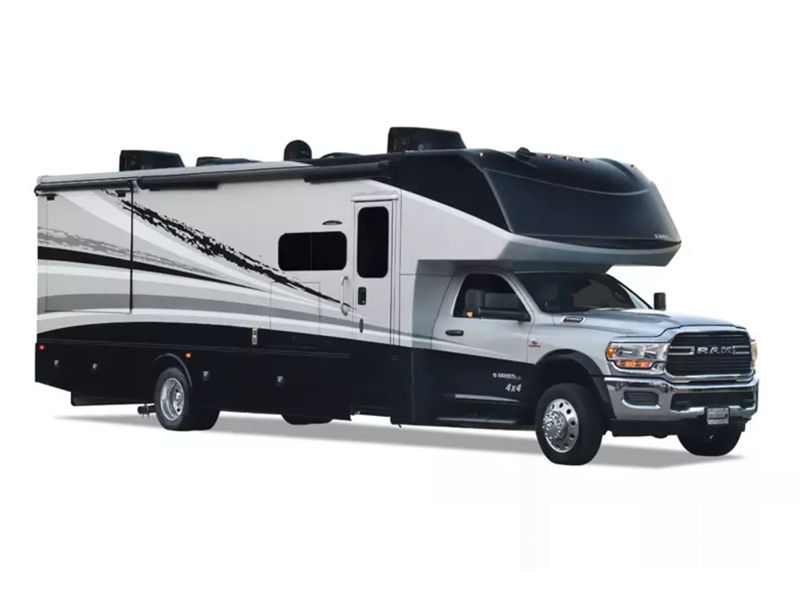

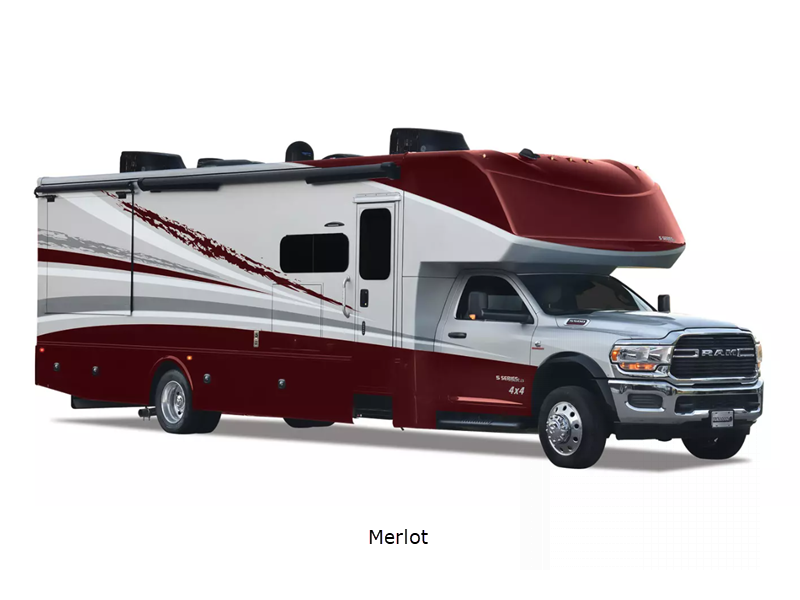

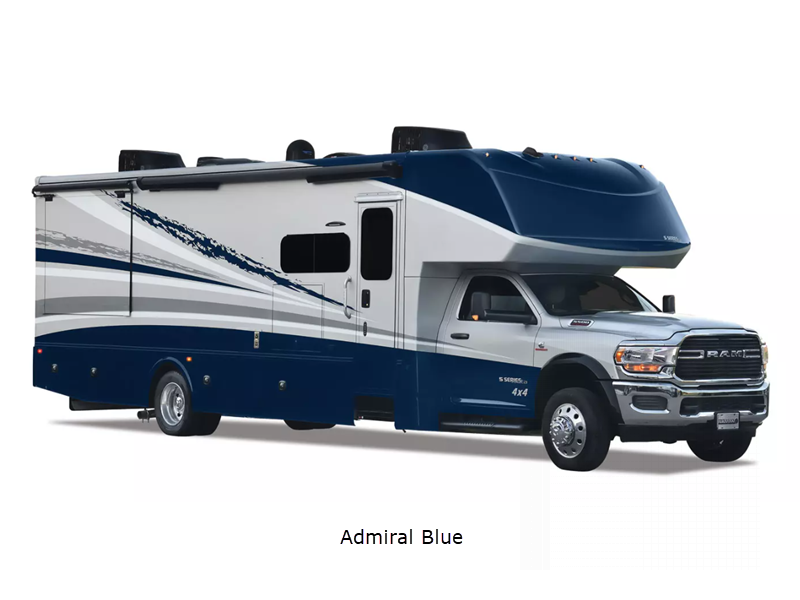

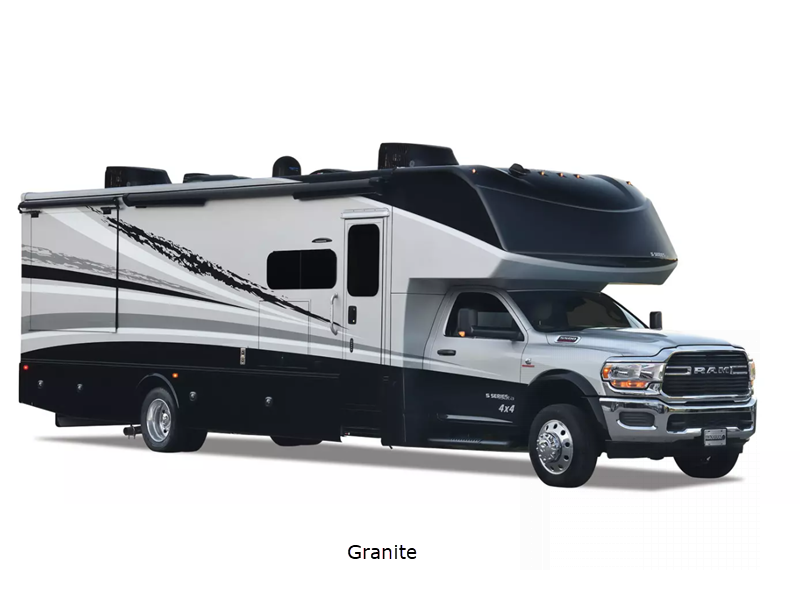

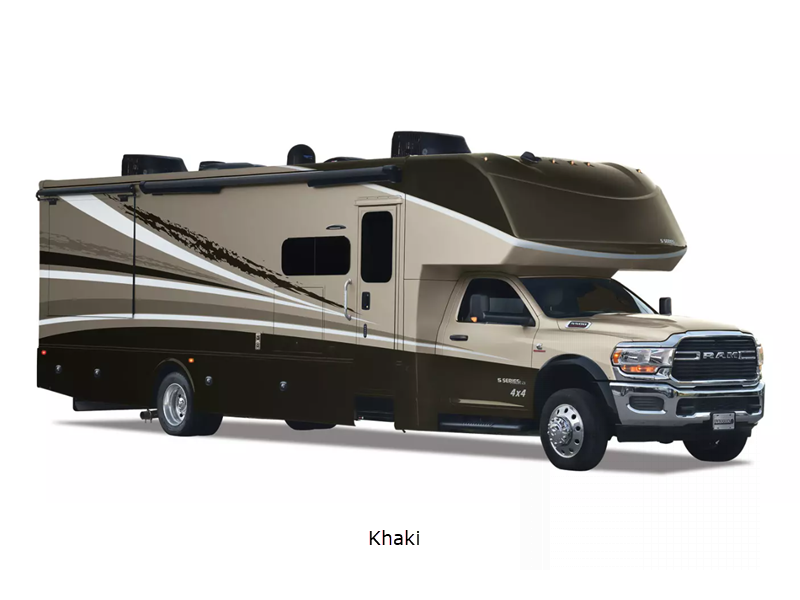

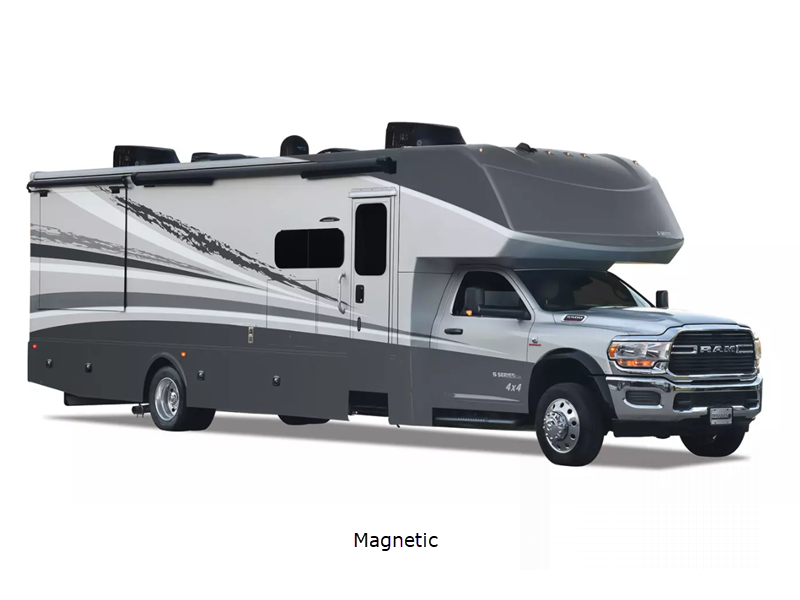

    Exterior Color Admiral Blue, Granite, Khaki, Magnetic, Merlot,
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 78 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 45 gals
    Tire Size 225/70R19.5G
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 360 hp
    Fuel Capacity 52 gals
    Wheelbase 217 in
    Number Of Bunks 1
    Available Beds RV Queen
    Torque 800 ft-lb
    Refrigerator Size 10 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7250 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED Smart TV, BR 32" LED Smart TV
    Awning Info 16' Dual-Pitch Armless with LED Lighting
    Gross Combined Weight 37500 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 6
    Slides 2
    Length 33 ft 3 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Champagne, Carbon, Dusk
    Exterior Color Admiral Blue, Granite, Khaki, Magnetic, Merlot,
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 78 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 45 gals
    Tire Size 225/70R19.5G
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 360 hp
    Fuel Capacity 52 gals
    Wheelbase 238 in
    Number Of Bunks 1
    Available Beds RV Queen
    Torque 800 ft-lb
    Refrigerator Type Residential Stainless Steel with Ice Maker
    Refrigerator Size 16 cu ft
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7250 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 30000 btu
    TV Info LR 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV
    Awning Info 16' Dual-Pitch Armless with LED Lighting
    Gross Combined Weight 37500 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Isata 5 34DS

    Isata 5 34DS Floorplan Image

    Take a Virtual Tour

    Dynamax Isata 5 Super C diesel motorhome 34DS highlights: Rear Private Bedroom ... more about Isata 5 34DS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 35 ft 11 in
    Ext Width 8 ft
    Ext Height 12 ft 4 in
    Interior Color Champagne, Carbon, Dusk
    Exterior Color Admiral Blue, Granite, Khaki, Magnetic, Merlot,
    Hitch Weight 10000 lbs
    Gross Weight 19500 lbs
    Fresh Water Capacity 78 gals
    Grey Water Capacity 45 gals
    Black Water Capacity 45 gals
    Tire Size 225/70R19.5G
    Furnace BTU 42000 btu
    Generator 8KW Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L I6 Turbo
    Chassis Ram 5500 SLT
    Horsepower 360 hp
    Fuel Capacity 52 gals
    Wheelbase 265 in
    Number Of Bunks 1
    Available Beds RV King
    Torque 800 ft-lb
    Refrigerator Type Residential Stainless Steel with Ice Maker
    Refrigerator Size 16 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 7250 lbs
    Axle Weight Rear 13500 lbs
    LP Tank Capacity 20.3 gals
    Water Heater Type Truma Aqua Go Comfort On Demand
    AC BTU 30000 btu
    TV Info Cab 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV
    Awning Info 16' Dual-Pitch Armless with LED Lighting
    Gross Combined Weight 37500 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

Isata 5 Features:

Standard Features (2022)



Chassis

  • Ram® 5500 SLT Chassis- Factory 4-Wheel Drive
  • Cummins® 6.7L I6 Turbo Diesel Engine (360hp/800 ft.-lbs. of Torque)
  • AISIN® HD 6-Speed Automatic Transmission
  • 52-Gallon Fuel Tank
  • 9-Gallon Diesel Exhaust Fluid Tank
  • Trailer Hitch (10,000 Tow lbs.) with 7-Way Round Tow Connection

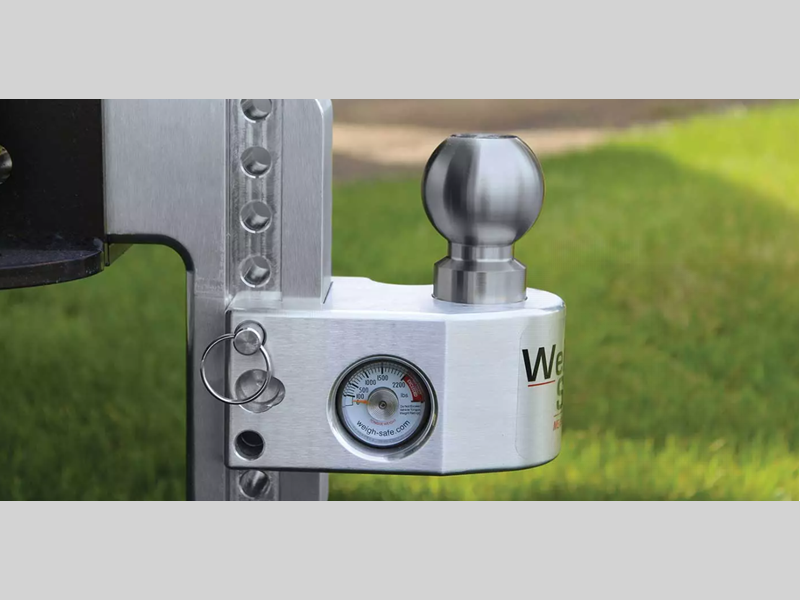

  • Weigh Safe Trailer Hitch Receiver
  • Active Brake Assist
  • Adaptive Cruise Control
  • Ram® OEM Trailer Brake Control
  • Cummins® Smart Exhaust Brake System
  • Ram® ESC Suspension and Stability Package
  • Momentary Battery Booster Switch for Connecting Chassis and House Batteries
  • Tire Pressuring Monitoring System
  • Dual 12V Chassis Batteries
  • Dual 220-Amp Alternators (440 Total Amps)
  • 4-Wheel ABS
  • B-20 Bio Diesel Capability
  • Ram® 50KSI Chassis Construction
  • Engine Block Heater
  • Aluminum Running Boards
  • Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
  • Single Front Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
  • Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
  • 4.88 Rear Axle Ratio
  • Daytime Running Lights
  • Leatherette Reclining Driver and Passenger Seats with Armrest
  • Power Driver Seat
  • Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
  • 12V and USB Accessory Ports
  • Temperature/Compass Gauge with Traveler/Mini-Trip Computer
  • Cruise Control
  • 8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
  • Adjustable Steering Column
  • Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
  • Power Windows and Locks
  • 3-Point Seat Belts
  • Front Safety Airbags
  • Drink Holders

Construction

  • 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
  • Gel-Coat Fiberglass Walls with Azdel Backing
  • Aluminum-Framed Floor
  • Composite Flooring Substrate (Lightweight & Moisture Resistant)
  • Aluminum-Framed Roof Trusses
  • Crowned, One-Piece Fiberglass Roof
  • Foil-Lined Ductwork Throughout
  • Fiberglass Front Cap, and Front Wing Panels
  • Rear Bumper
  • Automatic, 4-Point Hydraulic Leveling Jacks
  • Dark-Tinted, Frameless Windows
  • Seamless Rotocast Storage Compartments with LED Lighting
  • Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
  • Electric Slide System

Exterior

  • Custom Full Body Paint Package
  • Premium Cut and Buffed Paint Finish
  • Front-End Diamond Shield® Paint Protection
  • Slideout Toppers

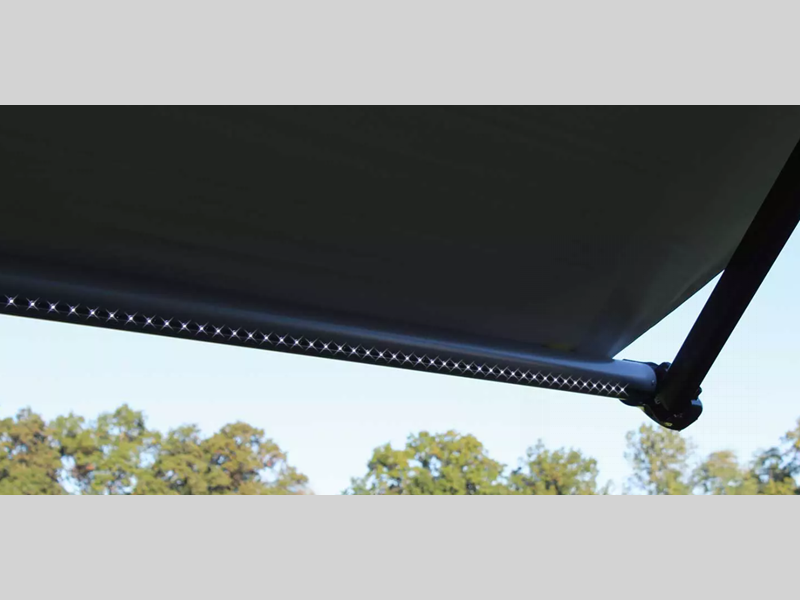

  • Armless Patio Awning with LED Lighting and Motion-Activated Retraction
  • LED Patio Light
  • Power Entry Steps
  • Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
  • Keyless Entry Touch Pad at Entry Door
  • Lighted Acrylic Entry Grab Handle
  • Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV (N/A - 28SS)
  • Exterior TV Mount (28SS Only)
  • Front and Rear LED Clearance and Marker Lighting
  • Rear LED Docking Lights
  • Rear "DYNAMAX" Rock Guard

Interior

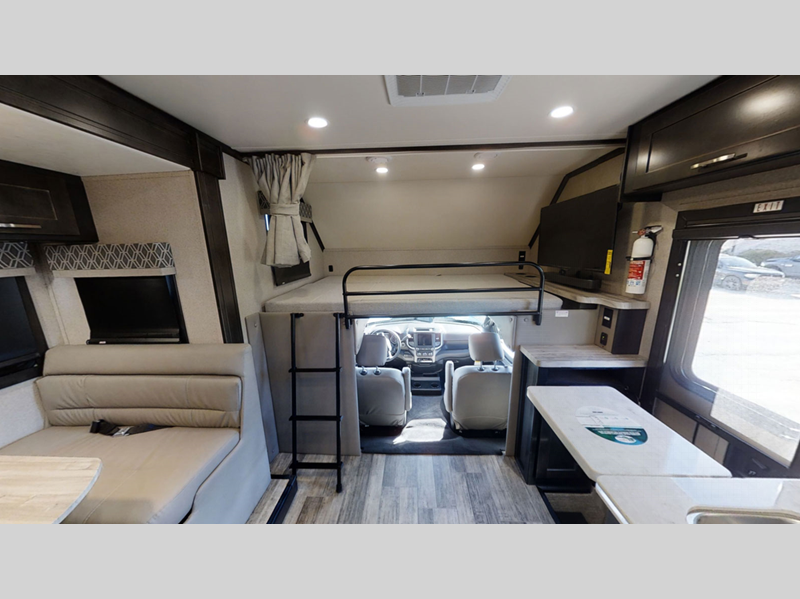

  • Front Cab-Over Bunk Area with Mattress (50” x 80”) and Privacy Curtain
  • Premium Vinyl Flooring Throughout
  • Deluxe Carpet with Pad in Living Area Slide Room(s)
  • Soft-Touch Padded Vinyl Ceiling
  • LED Recessed Ceiling Lights
  • Sprung, Residential Style Dinette Seats with Lift Up Storage
  • Tri-Fold Sofa (30FW, 34DS)
  • Coordinating Window Treatments
  • Blackout Roller Shades
  • Hardwood Shaker-Style Cabinetry

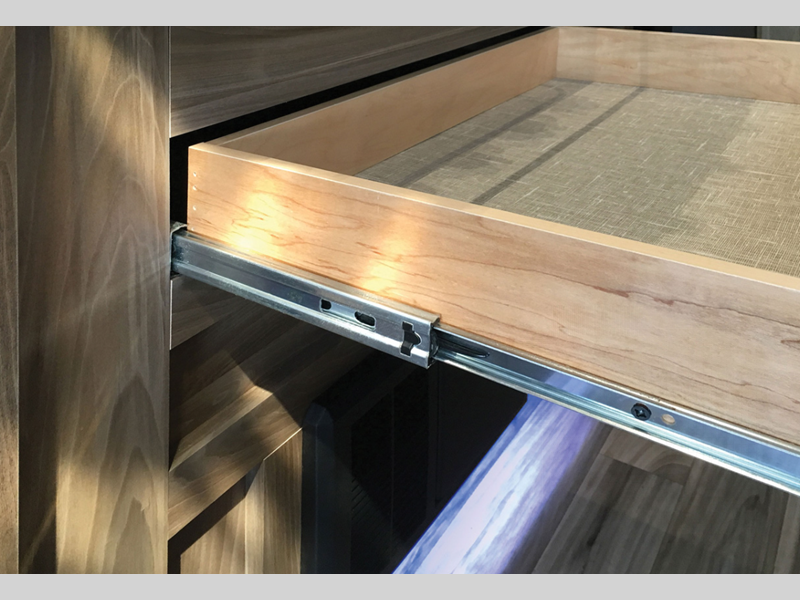

  • Full Extension, Soft-Closing Drawer Guides (Where applicable)
  • Hidden Hinges
  • 39” LED Smart TV (Living Area)
  • Sound Bar (Living Area)
  • Entry with Non-Skid Rubber Steps and Risers
  • Privacy Curtain for Cab-Over Bunk
  • Thermal, Reflective Front Privacy Shades
  • USB Charging Ports

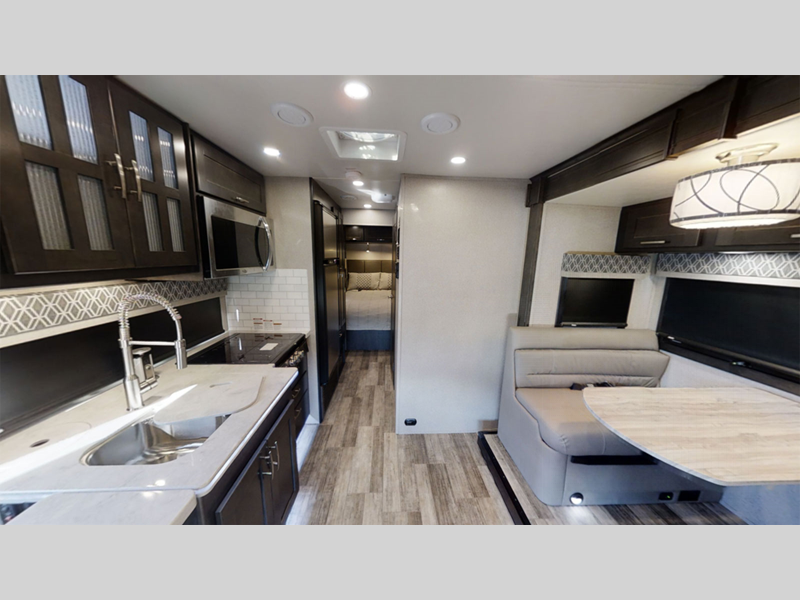

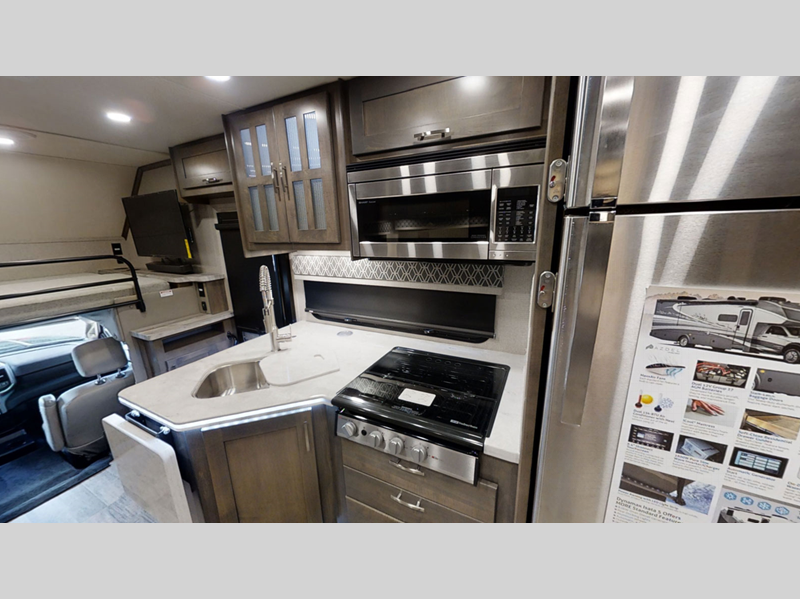

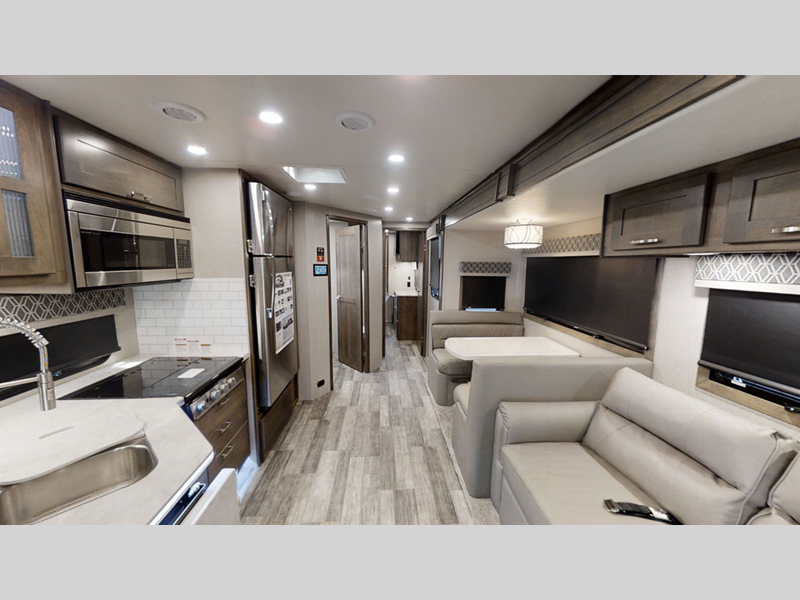

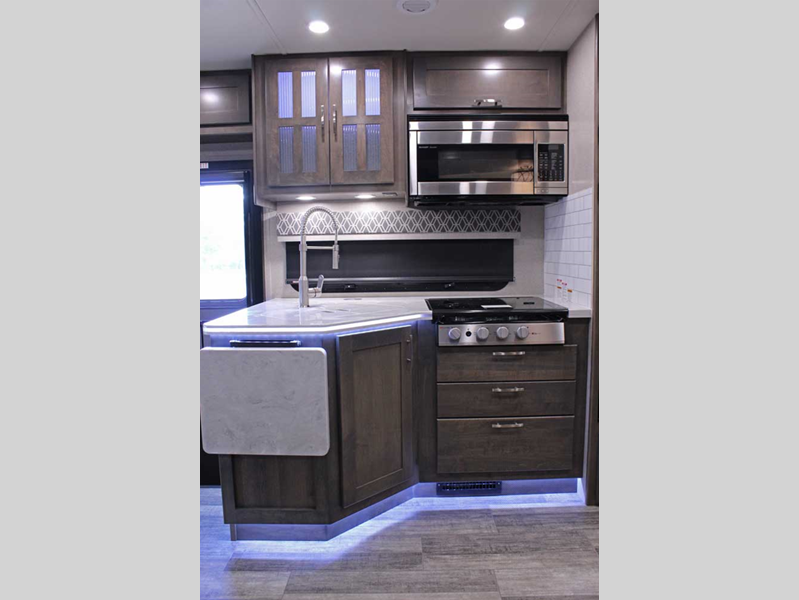

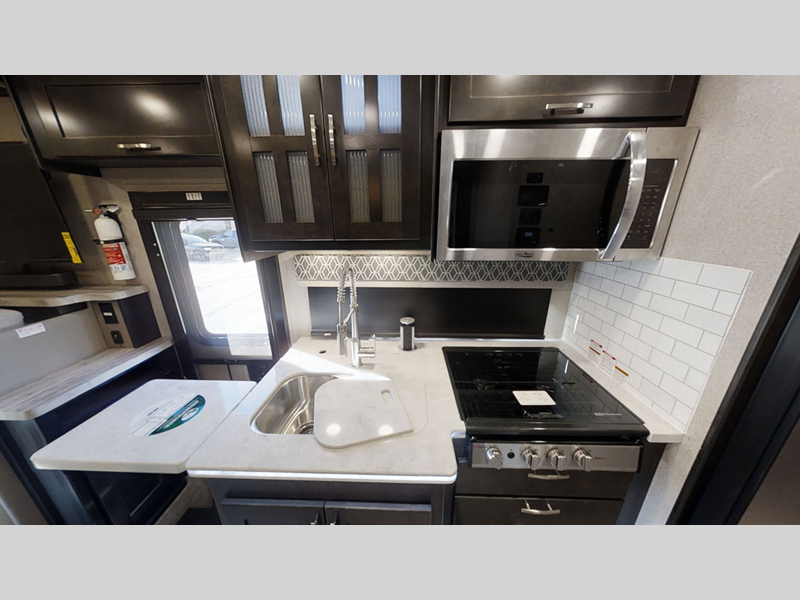

Kitchen

  • Gas Range with Glass Cover
  • Convection Microwave Oven
  • 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel) (N/A 28SS)
  • 10 cu. ft. Refrigerator with Ice Maker (28SS Only)
  • Solid Surface Countertops with LED Lighting and Backsplash
  • Stainless Steel Double-Bowl Sink with Solid Surface Covers
  • Residential Stainless Steel Spring Gooseneck Faucet
  • Pantry (Floor plan specific)
  • Under-Cabinet Lighting
  • Kitchen Trash Can
  • MaxxAir® Power Vent with Built-In Rain Cover

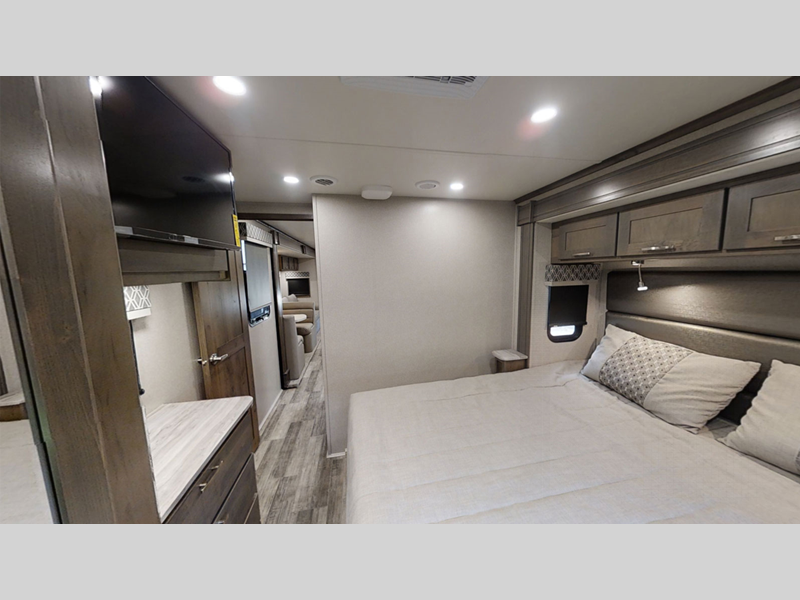

Bedroom or Bunk Area

  • King Bed (70” x 75”) with Gel-Infused Memory Foam Mattress (34DS)
  • Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (30FW, 28SS)
  • Deluxe Padded Headboard (28SS & 34DS)
  • Designer Bedding Package
  • 32” LED Smart TV
  • Cedar-Lined Wardrobe
  • LED Reading Lights
  • USB Charging Ports

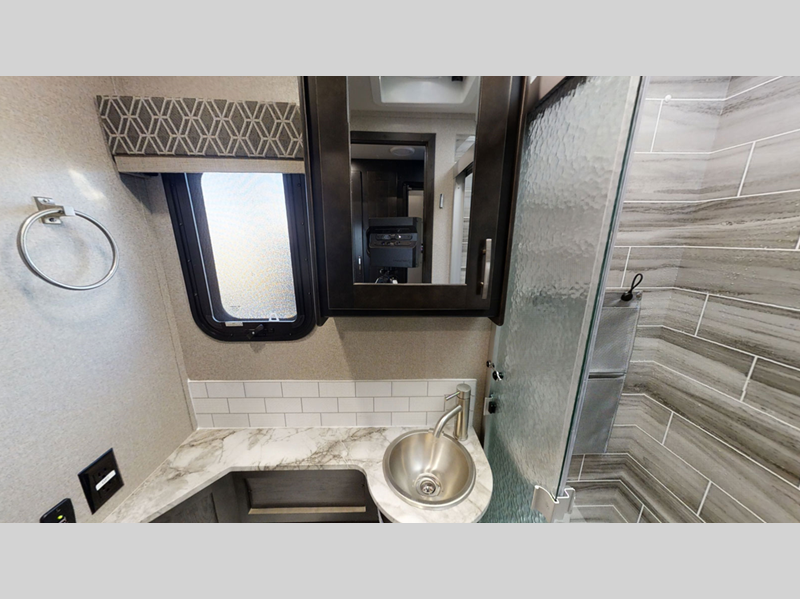

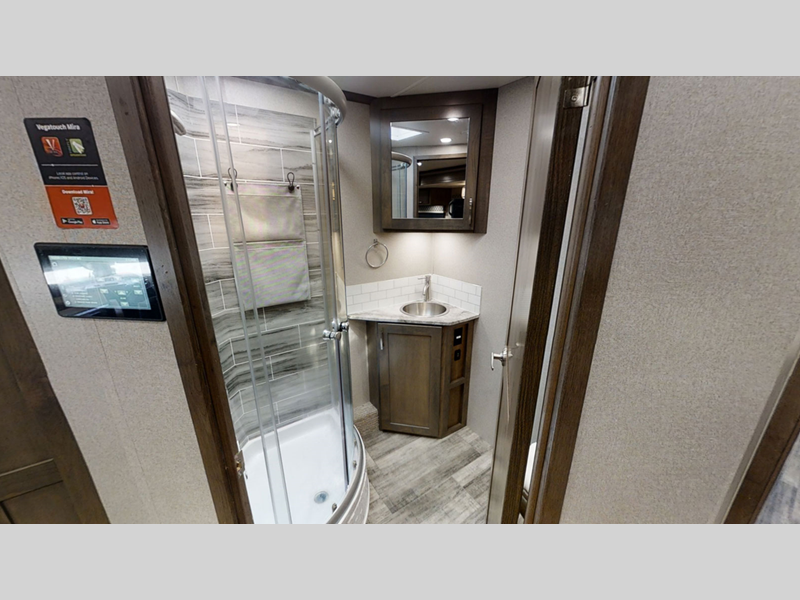

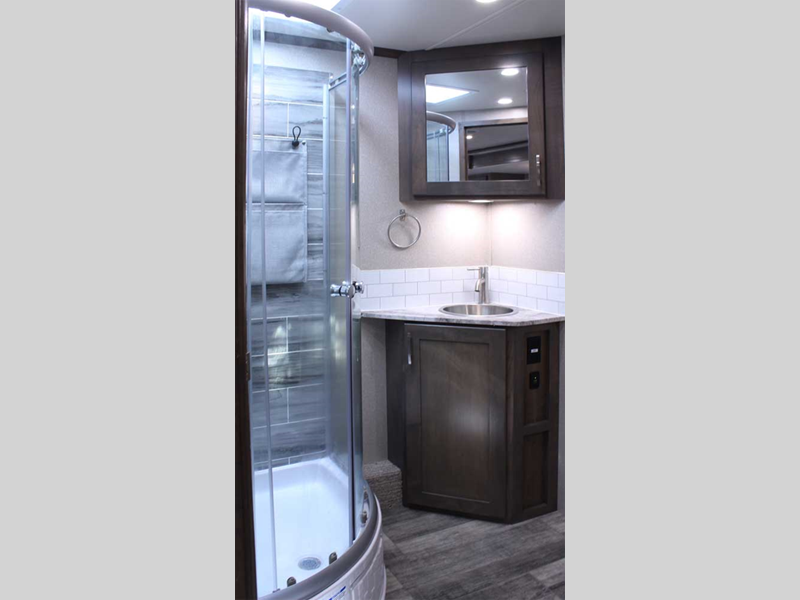

Bathroom

  • Designer Shower with Skylight
  • Oxygenics Body Spa® RV Shower Head
  • Stainless Steel Sink with Residential Faucet
  • Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
  • Porcelain Foot-Flush Toilet (30FW)
  • MaxxAir® Power Vent with Built-In Rain Cover

Utilities

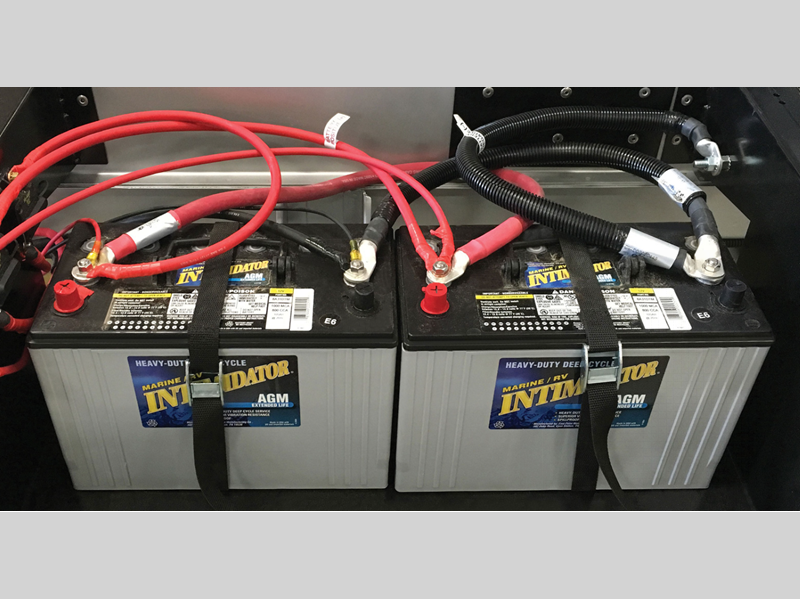

  • Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
  • Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
  • Battery Disconnect
  • 50-Amp Service
  • 3,000W Pure Sine Wave Inverter/Charger (3,500 Peak Watts)
  • 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)

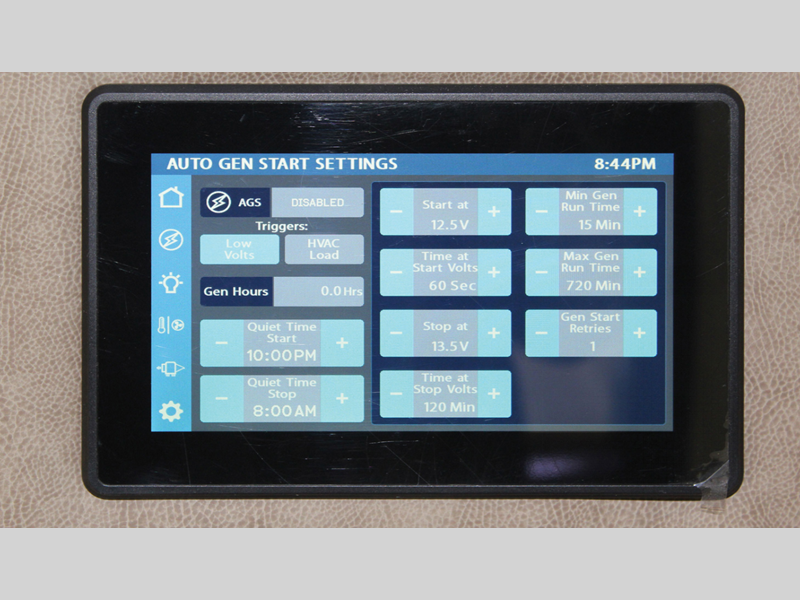

  • Automatic Generator Start

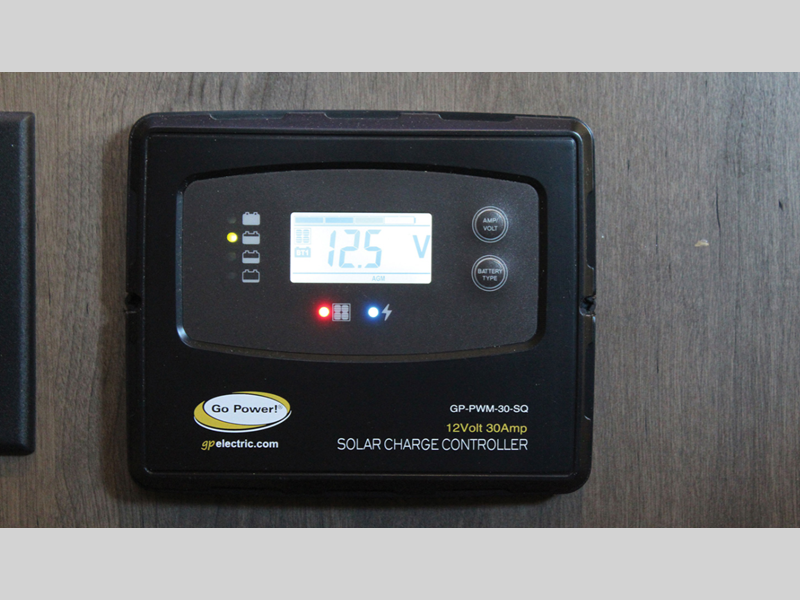

  • Solar Panels- Two 100 Watt with 30 Amp Controller
  • Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pump
  • 42,000-BTU LP Furnace with Electronic Ignition
  • 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
  • 20.3-Gallon LP Tank (WC)
  • LP Quick Connect
  • Water Filtration System
  • Exterior Shower in Service Bay
  • Exterior GFCI Receptacle
  • Winegard® AIR 360+ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
  • 4x4 HDMI Matrix
  • Cable TV/Satellite Hookup in Service Bay
  • Black Tank Flush
  • Furnace-Heated Utility Compartment
  • Enclosed and Furnace-Heated Holding Tanks
  • Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
  • Carbon-Monoxide, LP, and Smoke Detectors
  • Fire Extinguisher

Options

  • 2-Stage Front Air Suspension (Self-Leveling)
  • 10 cu ft. 2-Way Refrigerator in Place of Standard Refrigerator (30FW, 34DS)
  • Dual, Power Reclining Theater Seats in Place of Dinette (28SS Only)
  • Dual, Power Reclining Theater Seats in Place of Sofa (30FW, 34DS)
  • Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
  • Tri-fold Sofa with Pedestal Table in Place of Dinette (28SS Only)
  • Innomax Adjustable Comfort, Digital Smart Bed (28SS Only)
  • Low-Temp Lithium (200aH) in Place of AGM Batteries

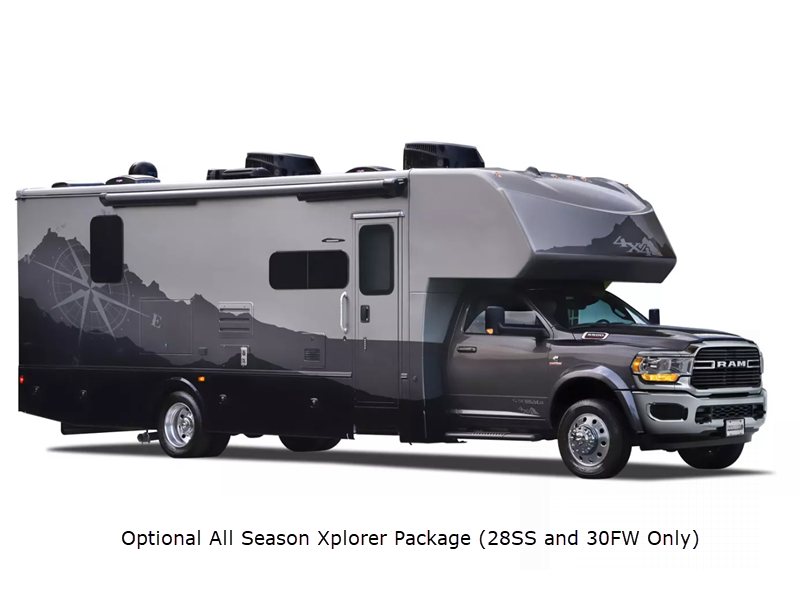

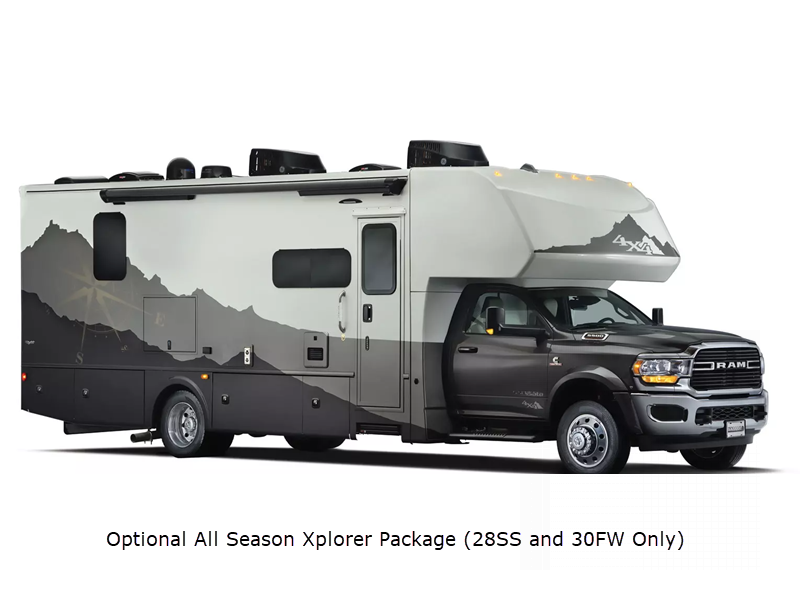

  • Xplorer Package - Includes Dual-Pane, Dark-Tinted Frameless Windows; Insulated Cab Curtain; Four Lithium House Batteries; 800W Solar Package; and Insulated Utility Bay with Secondary Tank Heater and Temperature Sensor (N/A 34DS)

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
