Get your vacation on with a NeXus RV Wraith Super C diesel motorhome! A durable Freightliner S2 RV chassis holds them together and a 6.7L Cummins ISB engine coupled with a 6 speed Allison transmission powers them. Their best in class "all steel-composite" is up to 72% stronger for safer rides and steel in the superstructure minimizes potential water damage, as well as maximizing the thermal and sound insulation.



These luxury units are packed full with quality features like a deluxe innerspring mattress, upgraded flooring, and solid surface kitchen countertops. You will appreciate having a water filtration system throughout as well as an on-demand hot water heater for added convenience. The deluxe 4-color full body paint and frameless windows are sure to turn heads down the highway, and the full automatic leveling jacks will have you set up in no-time!



When buying a new motorhome, the Wraith Super C diesel by NeXus RV will check off all your boxes; quality, safety, carrying capacity, luxury, and peace of mind!

  • Wraith 32W

    Wraith 32W Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 32W highlights: Bunk Over Cab Separated ... more about Wraith 32W

    Specifications

    Sleeps 6
    Slides 2
    Length 32 ft 5 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 6 in
    Int Height 6 ft 9 in
    Interior Color Chocolate, Pebble, Linen

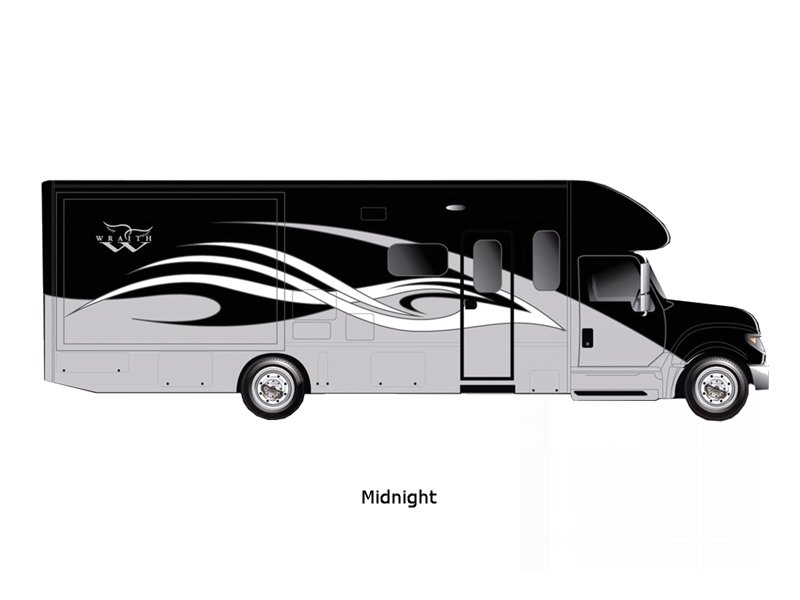

    Exterior Color Midnight, Ocean Blue, Oasis
    Hitch Weight 10000 lbs
    GVWR 25999 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size 22.5"
    Furnace BTU 35000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis International
    Horsepower 300 hp
    Fuel Capacity 70 gals
    Wheelbase 229 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 660 ft-lb
    Refrigerator Type Whirlpool Electric
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20.3 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 40" Flat Screen TV, Cab Over Bunk LED
    Awning Info Electric with LED Lights
    Gross Combined Weight 33000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Specifications

    Sleeps 6
    Slides 2
    Length 33 ft 9 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 6 in
    Int Height 6 ft 9 in
    Interior Color Chocolate, Pebble, Linen
    Exterior Color Midnight, Ocean Blue, Oasis
    Hitch Weight 10000 lbs
    GVWR 25999 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 43 gals
    Black Water Capacity 43 gals
    Tire Size 22.5"
    Furnace BTU 35000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis International
    Horsepower 300 hp
    Fuel Capacity 70 gals
    Wheelbase 238 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 660 ft-lb
    Refrigerator Type Whirlpool Electric
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 20.3 gals
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric
    AC BTU 28500 btu
    TV Info LR 40" Flat Screen TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 30F

    Wraith 30F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 30F highlights: Flat Screen TV in ... more about Wraith 30F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft 2 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2 RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 230 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR Flat Screen TV
    Awning Info Electric with LED Lights
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 32F

    Wraith 32F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 32F highlights: Bunk Over Cab ... more about Wraith 32F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 32 ft 5 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft 2 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2 RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 230 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR Flat Screen TV, Cab LED TV
    Awning Info Electric with LED Lights
    Gross Combined Weight 33000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 33F

    Wraith 33F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 33F highlights: Bunk Over Cab Rear ... more about Wraith 33F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 3
    Length 35 ft
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 6 ft 9 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 230 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR Flat Screen TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Radius
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 34F

    Wraith 34F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 34F highlights: Bunk Over Cab Rear ... more about Wraith 34F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 33 ft 9 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 6 in
    Int Height 6 ft 9 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 230 in
    Number Of Bunks 1
    Available Beds RV Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR 32" Flat Screen TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 35F

    Wraith 35F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 35F highlights: Bunk Beds Bunk Over Cab ... more about Wraith 35F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 36 ft 1 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 6 in
    Int Height 6 ft 9 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 269 in
    Number Of Bunks 3
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR Flat Screen TV
    Awning Info Electric with LED Lights
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

  • Wraith 37F

    Wraith 37F Floorplan Image

    NeXus RV Wraith Super C diesel motorhome 37F highlights: Bath and a Half Booth ... more about Wraith 37F

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 2
    Length 37 ft 2 in
    Ext Width 8 ft 5 in
    Ext Height 12 ft 10 in
    Int Height 7 ft 2 in
    Exterior Color Noir, Ice, Guiness
    Hitch Weight 10000 lbs
    GVWR 24000 lbs
    Fresh Water Capacity 85 gals
    Grey Water Capacity 50 gals
    Black Water Capacity 50 gals
    Tire Size 22.5"
    Furnace BTU 30000 btu
    Generator 8.0 Onan Diesel
    Fuel Type Diesel
    Engine Cummins 6.7L
    Chassis Freightliner S2 RV
    Horsepower 340 hp
    Fuel Capacity 60 gals
    Wheelbase 230 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 700 ft-lb
    Refrigerator Type 12V
    Refrigerator Size 10 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 12.2 gals
    Water Heater Type On Demand
    AC BTU 28500 btu
    TV Info LR Flat Screen TV, BR TV
    Awning Info Electric with LED Lights
    Washer/Dryer Available Yes
    Gross Combined Weight 33000 lbs
    Shower Type Standard
    Electrical Service 50 amp

    Similar Floorplans

Wraith Features:

Standard Features (2024)



Chassis

  • Freightliner S2 RV
  • 340 HP Cummins Diesel Engine
  • Allison 2500MH Transmission
  • 700 Ft. Lb. Torque
  • Rear Air Ride Suspension
  • 9" Touch Screen w/ Phone Mirroring
  • Back Up Camera & Side View Cameras
  • Aluminum Rims with 22.5" Tires
  • Emergency Start Switch
  • Cup Holders
  • Engine Block Heater
  • 60 Gallon Fuel Tanks
  • 10 Gallon DEF Tank
  • Exhaust Break
  • Power Driver and Passenger Air Ride Seats
  • 10,000 lbs. Hitch w/Connector w/7 Way Plug and 4 Way Flat
  • GVWR 24,000 lbs.
  • GCWR 33,000 lbs.

Exterior

  • Seamless Gelcoat Fiberglass Sidewalls
  • Composite Substrate
  • High Strength Low Alloy Lightweight Steel Cage Throughout
  • Laminated Steel Framed Floor
  • Frameless Windows w/Automotive Seal
  • Heated and Remote Mirrors
  • Interior Entry Door Handle
  • Fiberglass Front Cap
  • Slide out Toppers Throughout
  • Seamless Wraparound Fiberglass Roof
  • Fully Automatic Leveling Jacks
  • Deluxe 4-Color Full Body Paint
  • Premolded Rear Roof Transition
  • Lighted Rubber-lined Galvanized Trunk Boxes
  • Valve Extenders on Rear Inner Wheels
  • Outside Shower
  • Slam Latch Compartment Doors w/Side Hinge
  • Wineguard 360 Antenna + Digital TV Antenna
  • 1 Cab Over Side Window on Driver's Side

Electrical

  • Battery Disconnect
  • 2 Deep Cycle Coach Battery 12 Volt
  • 50 Amp, 120 Volt Distribution Panel
  • 60 Amp, 12 Volt Power Converter
  • On Demand Hot Water Heater
  • 8.0 Onan Diesel Generator 8,000 Wattk
  • Exterior TV Cable Jack
  • Generator Auto Transfer Switch
  • Exterior Security Light
  • Electric Patio Awning w/LED Lights
  • LP Quick Disconnect
  • (1) 100 Watt Solar Panel
  • Auto Gen Start

Heating/Cooling

  • Dash A/C
  • 1 - 13,500 BTU Ducted Roof AC
  • 15,000 BTU Low Profile AC w/Heat Pump in LR
  • 30,000 BTU Furnace
  • Heated & Enclosed Holding Tanks
  • Above Floor Heat Ducts
  • HVAC Metal Ducting

Furnishings

  • Euro Recliner (32F, 35F)
  • Flat Screen TV in Living Room
  • Deluxe Innerspring Mattress
  • Double Bunk Bed (35F)
  • 60" x 80" Mattress (32F, 33F)
  • 60" x 74" Mattress (34F)
  • Deluxe Tri-Fold Sofa (32F, 33F, 35F, 37F)
  • TV in Bedroom

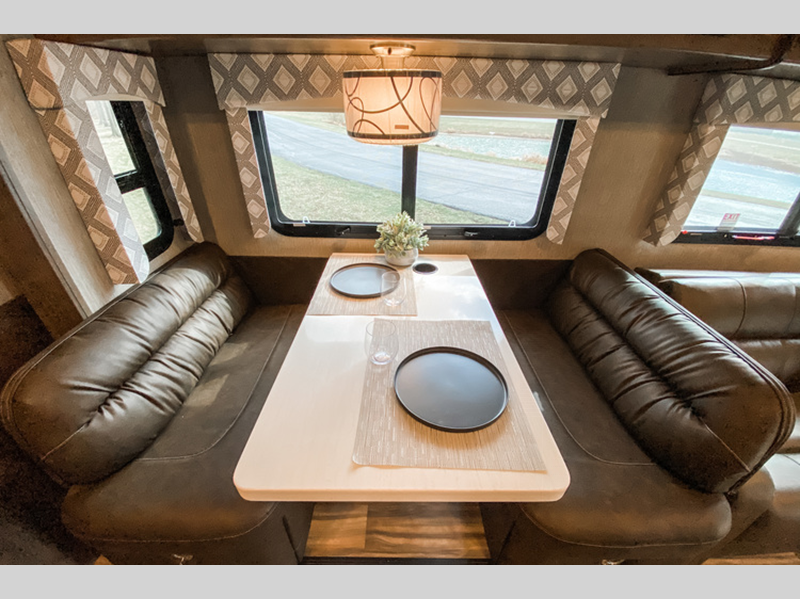

  • Dinette Booth
  • Soundbar In Living Room

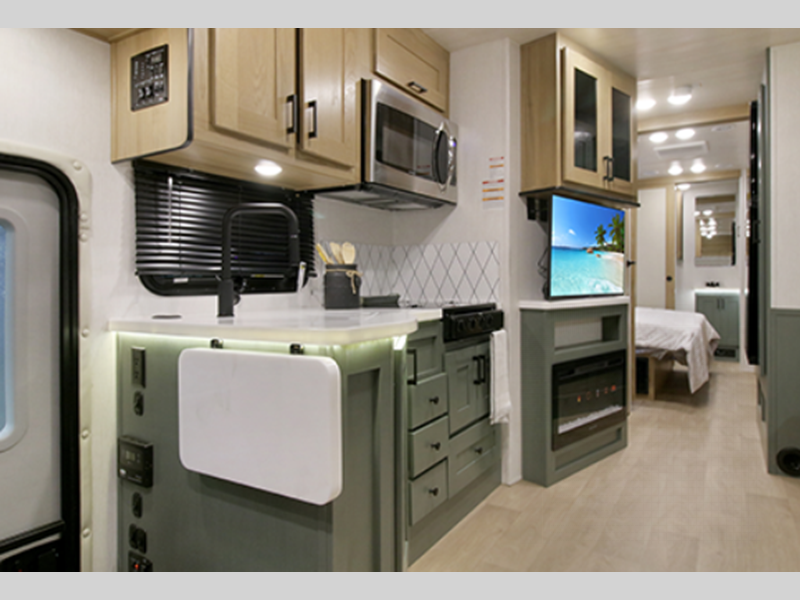

Décor

  • Upgraded Window Treatments
  • Night Roller Shades
  • Black Pull Handles and Fixtures

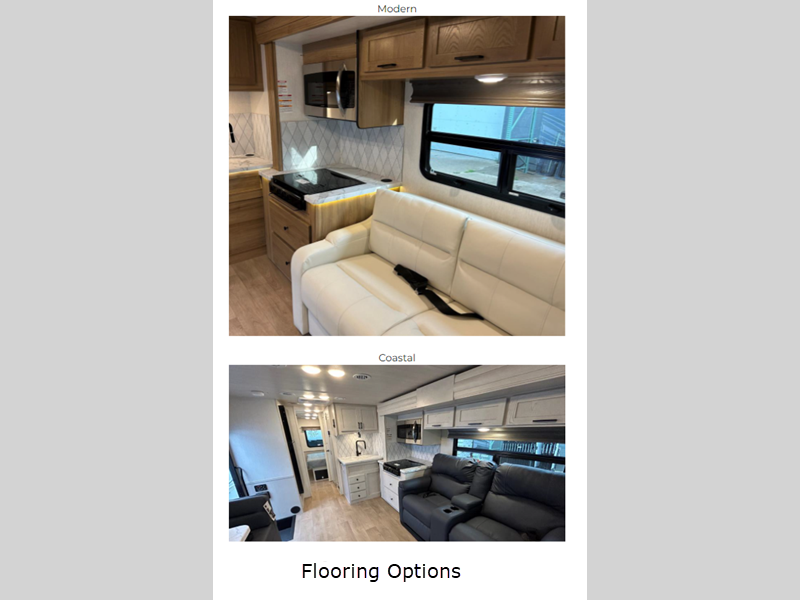

  • Upgraded Flooring
  • Sink Covers

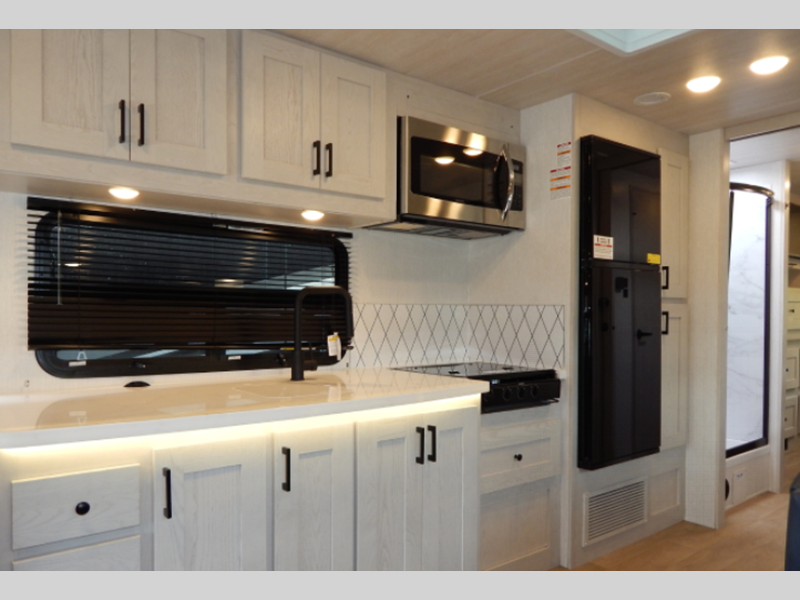

  • Stainless Steel undermount Sink in Kitchen
  • LED Lighting
  • Solid Surface Kitchen Countertops

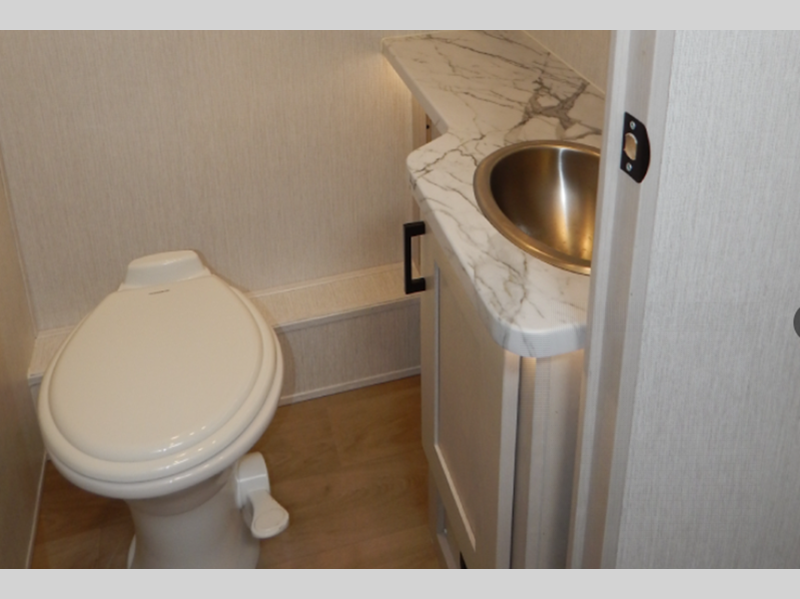

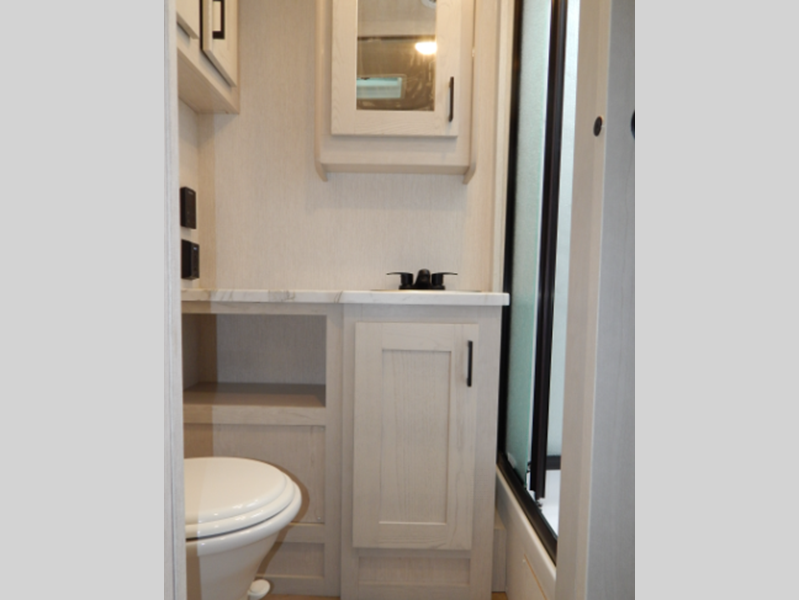

Bath

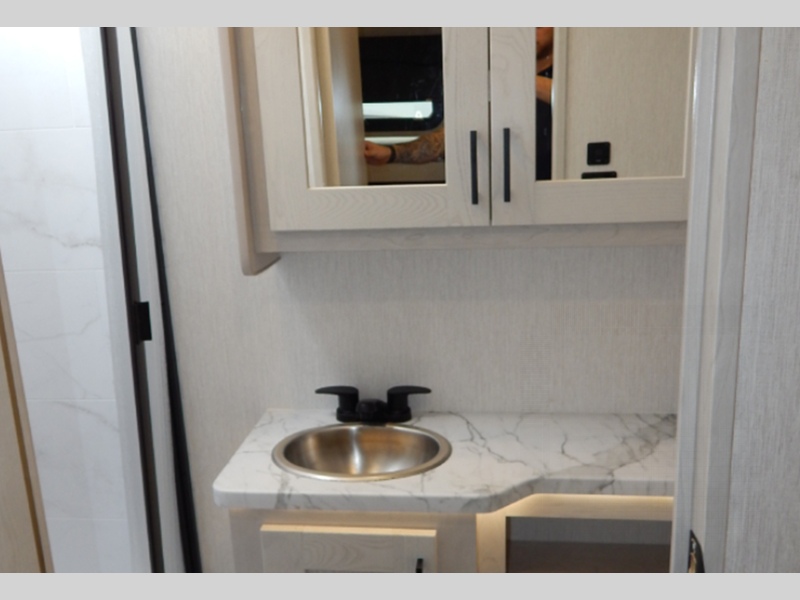

  • Large Medicine Cabinet
  • Stainless Steel Sink with Dual Faucet Control
  • Electric Roof Vent
  • Porcelain Toilet w/Foot Flush
  • Shower Skylight
  • Wall Light Switch
  • Shower Head with Flexible Hose

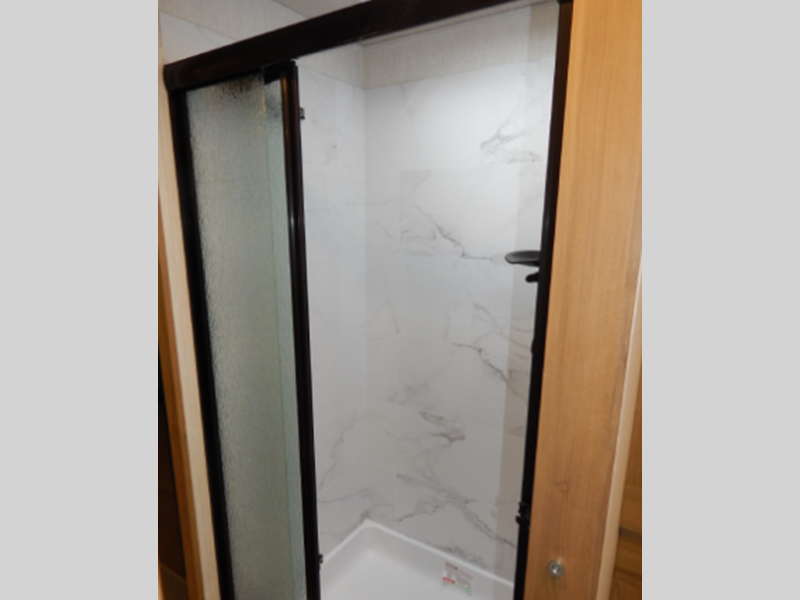

  • Vinyl Shower Door
  • Black Tank Flush Kit

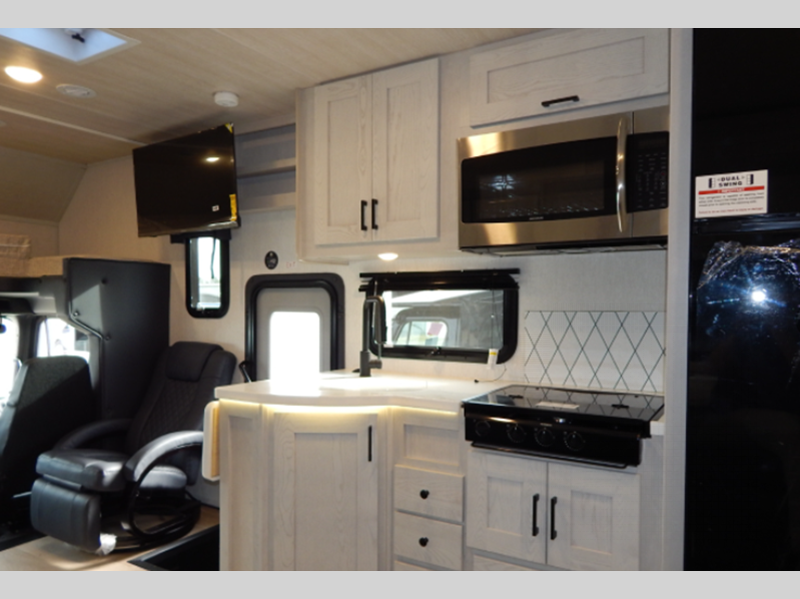

Appliances

  • 10 cu. ft. 12V Refrigerator
  • LP Gas Tank and Leak Detector
  • Carbon Monoxide Detector
  • Over The Range Stainless Steel Microwave w/Exhaust Fan
  • 3 Burner Stove Top w/Glass Cover
  • Water Filtration System Throughout
  • Residential Faucet w/ Sprayer

Miscellaneous

  • Integrated Entry Step  w/ Storage
  • Half Moon Courtesy Light Step Well
  • Double Electric Entry Step
  • Flip Up Countertop Extension

See us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Manu-Facts:

Nexus RV is a customer-driven RV Manufacturer focused on the Super C market space. We continue to achieve a steady growth trend through our outstanding dealer network and delivering what we promised when we promised it. Our market-focus RV offerings are a testament to our industry partner promise.

We Are Open!
