Sleeps 6
-
3 Slides
-
Bath and a HalfRear Bath
-
41ft Long
-
35,600 lbs

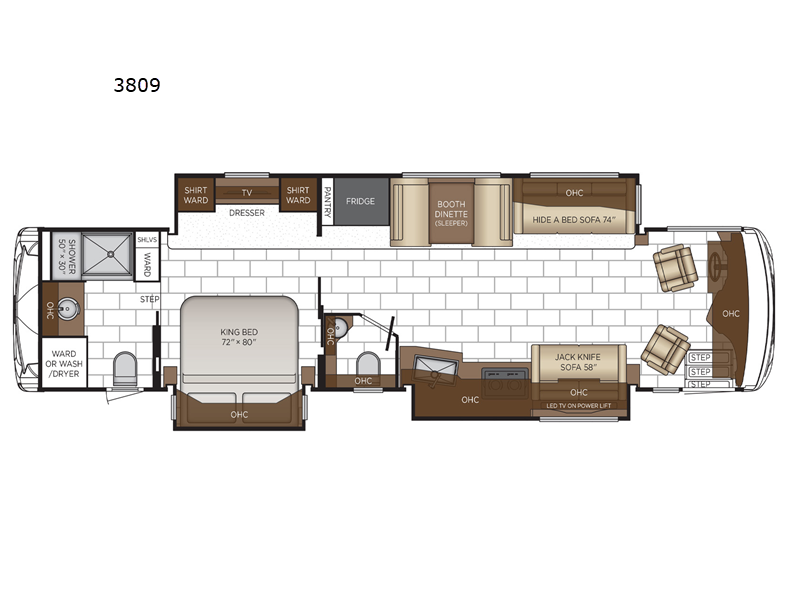

3809 Floorplan
Specifications
Sleeps | 6 | Slides | 3 |
Length | 40 ft 10 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 11 in | Int Height | 6 ft 11 in |
Hitch Weight | 15000 lbs | GVWR | 45000 lbs |
Dry Weight | 35600 lbs | Cargo Capacity | 9400 lbs |
Fresh Water Capacity | 105 gals | Grey Water Capacity | 75 gals |
Black Water Capacity | 55 gals | Furnace BTU | 50000 btu |
Fuel Type | Diesel | Engine | Cummins L 8.9 |
Chassis | Freightliner XCR Tag Axle | Horsepower | 400 hp |
Fuel Capacity | 100 gals | Wheelbase | 245 in |
Available Beds | King | Torque | 1250 ft-lb |
Refrigerator Type | Whirlpool | Refrigerator Size | 19.7 cu ft |
Convection Cooking | Yes | Cooktop Burners | 2 |
Shower Size | 50" x 30" | Number of Awnings | 1 |
Axle Weight Front | 15000 lbs | Axle Weight Rear | 20000 lbs |
Axle Weight Tag | 10000 lbs | Water Heater Type | Continuous |
AC BTU | 30000 btu | TV Info | LR 50" Samsung LED 4K TV on Televator, BR Samsung LED 4K |
Awning Info | Girard G2000 Power w/Wind Sensor, Remote, and LED Lights | Washer/Dryer Available | Yes |
Gross Combined Weight | 60000 lbs | Shower Type | Standard |
Electrical Service | 50 amp | VIN | 4UZACHFE4TCWM6377 |
Description

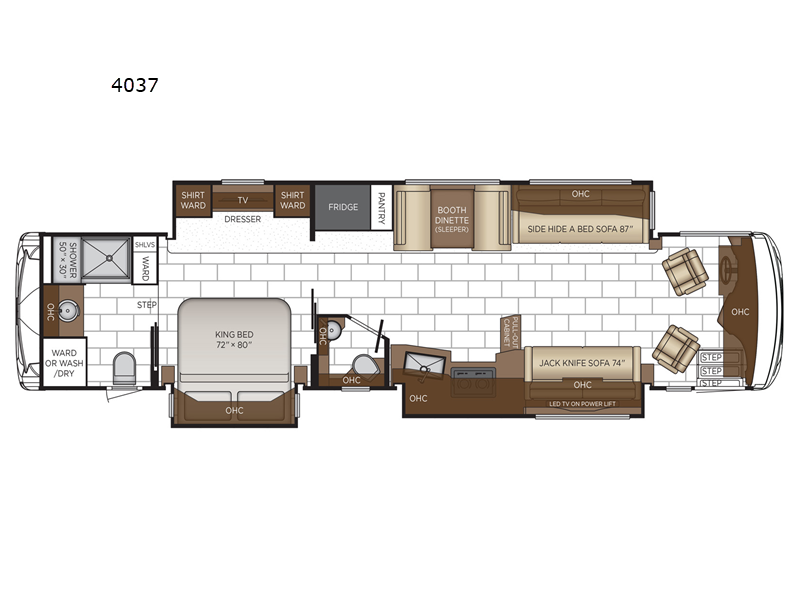

Newmar Ventana Class A diesel motorhome 4037 highlights:
- Triple Slides
- Jack Knife Sofa
- Front Overhead Storage
- Large Pantry
- Bedroom Dresser
New 2025 Newmar Ventana 3809 – Luxury, Power, and Innovation for Your Next Adventure
Experience first-class travel with the New 2025 Newmar Ventana 3809, a Class A diesel motorhome that blends high-end craftsmanship, cutting-edge technology, and superior performance. Built on a Freightliner XCR chassis and powered by a 400 HP Cummins L9 diesel engine, this coach offers a smooth, quiet ride, impressive towing capacity, and exceptional fuel efficiency. With luxurious interiors, a spacious triple slide-out floorplan, and modern amenities, the Ventana 3809 is perfect for full-time RVers, extended travelers, or those who demand the best in comfort and convenience.
Top Features of the 2025 Newmar Ventana 3809
-
Freightliner XCR Chassis with 400 HP Cummins L9 Diesel Engine for superior power, handling, and efficiency on long journeys.
-
Comfort Drive™ Steering System with passive steer technology, ensuring effortless maneuverability and reduced driver fatigue.
-
Triple Slide-Out Floorplan creating a spacious, open-concept living area for relaxation and entertainment.
-
Luxurious Master Suite featuring a king-size Sleep Number® bed, LED TV, full wardrobe, and a private rear bath with dual vanities for ultimate comfort.
-
Gourmet Kitchen with solid-surface countertops, residential refrigerator, induction cooktop, convection microwave, and a pull-out pantry, making meal prep easy and enjoyable.
-
Spacious Living Area with theater seating, a plush sofa, a convertible dinette, and a large LED TV, providing a true home-like atmosphere.
-
Full Bath with Dual Vanities and a large tile shower, offering a spa-like retreat on the road.
-
Additional Half Bath for Added Convenience, perfect for guests and easy access while traveling.
-
Advanced Climate Control & Hydronic Heating ensuring consistent interior temperatures, energy-efficient heating, and on-demand hot water for year-round comfort.
-
Premium Entertainment System with multiple Samsung LED TVs, Bose soundbar, Blu-ray player, and satellite prep, delivering top-tier entertainment.
-
Outdoor Living Features including a power awning, exterior LED TV, and pass-through storage compartments to enhance your outdoor experience.
Why Buy the 2025 Newmar Ventana 3809?
-
Luxury and Performance Combined – The Ventana 3809 offers residential-style amenities, modern technology, and powerful diesel performance, making every trip an unparalleled experience.
-
Perfect for Full-Time RVing or Extended Travel – With its well-designed floorplan, high-end appliances, and generous storage, this motorhome is built for long-term comfort on the road.
-
Unmatched Driving Experience – The Comfort Drive™ Steering System, tag axle stability, and advanced suspension technology provide a smooth, controlled, and quiet ride.
-
Newmar’s Renowned Craftsmanship – Built with exceptional materials, innovative design, and attention to detail, the Ventana 3809 stands out as one of the finest motorhomes in its class.
Why Buy from Dylans RV?
-
Luxury Motorhome Experts – Dylans RV specializes in high-end Class A motorhomes, ensuring you receive expert guidance and top-quality selection.
-
Competitive Pricing & Flexible Financing Options – We offer affordable financing plans and trade-in opportunities, making luxury motorhome ownership more accessible than ever.
-
Customer-Focused Experience – Our knowledgeable team provides personalized service, expert advice, and a seamless buying process to help you find the perfect motorhome.
-
Ongoing Support & Service – Our commitment to customers extends beyond the sale, with comprehensive service options and expert support whenever you need it.
The New 2025 Newmar Ventana 3809 is the perfect blend of luxury, power, and cutting-edge technology, designed for travelers who want the very best in comfort and performance. Call, Click, or Visit Dylans RV today to explore this exceptional motorhome and start your next adventure in total luxury!
Features
Standard Features (2025)
Exterior
Standard
- Full-Paint Masterpiece Finish™ with Diamond Shield Protection on Front Cap
- Convex Exterior Mirrors with Remote Control, Defrost and Turn Signal Indicators
- Chrome Exterior Mirrors
- Entrance Door with Automatic Step
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Mud Flaps
- Rear Protective Tow Guard with Stainless Steel Newmar Letters
- Undercoating
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
- Stainless Steel Exterior Trim Pieces on Front Cap and Grill Area
- Painted Power Baggage Door Locks, Keyless Entrance Door with Touch Pad & Doorbell
Optional
- Chrome Power Baggage Door Locks
- Flag Pole Bracket
- Rear Ladder
- Storage Tray 32" x 91" Non-Power, Location-Bay 2
- Storage Tray 36" x 91" Non-Power, Location-Bay 2
- Storage Tray 43" x 56" Non-Power, Location-Bay 3
- Storage Tray 43" x 56" Non-Power, Location-Bay 4
Construction
Standard
- Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Automatic Mechanical Lock Arms on Slideout Rooms-Scissor Style
- Polar Pak R19 Batten Insulation in Roof
- Fiberglass Roof and Integrated Gutter Rail
- Egress Door with Ladder System
Chassis
Standard
- Aluminum Wheels
- Cruise Control
- Comfort Drive™ Steering With Adjustable Control
- Manual Tilt and Telescope Steering Column with VIP Smart Wheel
- Recessed Fuel Fills with Crossover to Fill from Either Side
- Back-Up Alarm
- Anti-Lock Braking System
- Chassis Battery Disconnect
- V-Ride Drive Axle Suspension on Freightliner Chassis
- Glass Dash Instrument Panel
- Dash Panel Optiview - Freightliner
- Headlights Automatic High Beam
- Mobile Eye Tracking and Lane Departure Warning System
- Steering Wheel Nine Function Switch Pod in Center on Spartan Chassis
- Valid Digital Glare Free Dash on Spartan Chassis
- Module Cummins Acumen
- Freightliner® 380Hp on 35-38’ Floor Plans
- Freightliner® Tag Axle 400Hp on 40-43’ Floor Plans
- Tire Pressure Monitoring on Chassis
Optional
- Spartan 380Hp on 35'-38'’ Floor Plans
- Spartan Tag Axle 400Hp on 40-43’ Floor Plans
- OnGuard Collision Mitigation Adaptive Cruise System with Adjustable Following Distance Control-Freightliner or Spartan
Mechanical and Electrical
Windows, Awnings, & Vents
Standard
- Frameless Double-Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Girard G2000 Power Side Awning with Wind Sensor, Remote Control & LED lights
- Slideout Awning Covers
- One Piece Tinted Windshield
Optional
- Carefree Window Awning Pkg of (3), 1-Bedroom, 1-Off Door Side Livingroom, 1-Door Side Livingroom
- Kitchen Window*
- Two Nova Side Awnings
- Bunk Windows*
Air Conditioning & Heating
Standard
- Two-15K Penguin™ Heat Pump Air Conditioners
- Three-15K Penguin Heat Pump Air Conditioner on 43’ Floor Plans
- Dash Heater and Air Conditioner
- Driver & Passenger Dash Overhead Ventilation System
- Wall Mounted Sensors for Heating and Air Conditioning
Optional
- Electric Radiant Heat Installed Below Main Floor Tile
Electrical
Standard
- 8.0 kW Cummins Onan® Diesel Quiet Series Generator
- 50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
- Eight 6-Volt House Batteries
- Battery Disconnect Switch for House Battery
- Automatic Generator Start on Low Battery or Temperature Setting
- 10 Watt Solar Panel to Charge Chassis Battery
- 2800w Modified Sine Inverter
- 12-Volt Auxiliary Receptacle on Dashboard
- Emergency Engine Start Switch
- Engine Block Heater
- Exterior Security Light on Doorside
- Midship Side Turn Signals
- LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
- Lights in Exterior Storage Compartments
- Manually Operated Hold-to-Run Slideout Switch
- Cable TV Connection
- Interior Courtesy Lights
- USB Outlet at Dinette and Bedroom Nightstand
- USB Outlet at Dash for Drive Use
- Wireless Charging Mat Built into Dash for Driver Use
- Wireless Charging Mat Built into Passenger Console
- Spare Fuses in Chassis and House Fuse Panels
- Energy Management System
- Multiplex Monitor System 10.1" in Center of Coach with Interior Lighting and HVAC Controls
- Dimmable/Adjustable Reading Lights at Head of Bed
- 110-Volt Recept in Bed Overhead with Two Pass-Through Ports
- 110-Volt/USB Outlet at Head of Each Bunk Area*
- Power Rewind Reel with 33' Cord*
- Power Rewind Reel with 50' Cord*
- Newmar App
- Dash Radio, Cameras and Monitors to Power-up from both House Batteries Ignition
Optional
- Solar Prep with Six Gauge Wire Ran from the Roof to the House Battery Compartment*
- Four Flexible 110w Solar Panels on Roof
- Transfer Switch with Surge Protector
- Lithium Ion 640 AHR Battery System with Two 3000w Pure Sine Inverters
- Lithium Ion 960 AHR Battery System with Two 3000w Pure Sine Inverters
Plumbing & Bath
Standard
- Demand Water System
- Sewage Holding-Tank Rinse
- Dometic® Macerator Stool*
- Sentrel Acrylic Shower Walls with Glass Door
- Water Filter for Entire Unit
- Exterior Shower
- Auto Fill Water Works Compartment
- Power Water Hose Reel
- Aqua Miser Shower System
Optional
- Fold Down Shower Seat
- Hot Water Line to Generator Area*
Interior
Cabinets & Furniture
Standard
- Sable Maple Hardwood Cabinets-Suede Finish
- Concealed Hinges on Cabinet Doors
- Pullout Pantry Shelves*
- Soft Close Cabinet Drawers
- Drawer Slides Push to Release in Pantry
- Drawers with Full Extension Ball Bearing Guides
- Cooktop Cover Flush, Matching Material
- Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
- Polished Solid Surface Countertop in Bathroom and Bedroom
- Desk with One Chair*
- Dinette Booth Williamsburg Convertible*
- Lifts on Bed Top
- Ultrafabric Sofa and Driver/Passenger Seats
- Driver Seat with Vibrator for Mobile Eye System
- Driver/Passenger Seats with Six-Way Power, Power Lumbar and Footrest
- Plush Pillow Top Mattress
- Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
- Mesh Cell Phone Holder at Each Bunk Bed*
- Molded Silverware Divider Tray
- Villa Comfort Fit Furniture
Optional
- Morel Glazed Maple Hardwood Cabinets—High Gloss or Suede Finish
- Sable Maple Hardwood Cabinets—High Gloss Finish
- Sedona Glazed Maple Hardwood Cabinets—High Gloss or Suede Finish
- Summit Maple Hardwood Cabinets—High Gloss or Suede Finish
- Two-Tone Summit Maple and Sable Maple Hardwood Cabinets—High Gloss or Suede Finish
- Two-Tone Summit Maple and Sedona Glazed Maple Hardwood Cabinets—High Gloss or Suede Finish
- Two-Tone Summit Maple and Morel Glazed Maple Hardwood Cabinets—High Gloss or Suede Finish
- Mattress Air R5 Radius Corner
- Buffet Dinette with Two Fixed and Two Folding Chairs
- Combination Desk with Buffet Table, Two Fixed and Two Folding Chairs
- Dinette Convertible with Two Fixed and Two Folding Chairs that Face to Window
- Dinette Combination Desk with Free Standing Hidden Leaf Table with Two Fixed and Two Folding Chairs that Face to Window
- Dinette Euro Booth with Two Table Leaves, Removable Table Leg and Two Folding Chairs
- Two Recliners with Lampstand and Reading Lights
- 74" Powered Theater Seating with Reading Lights
- 84" Powered Theater Seating with Reading Lights
- 87" Powered Theater Seating with Reading Lights
- Bunk Beds to Convert to Wardrobe
- Bunk Bed Drop-Down Over Driver and Passenger Seats to Windshield with Bunk Ladder
Appliances
Standard
- Convection Stainless Steel Microwave with Air Fryer Feature
- All Electric, Cooktop Flush Mount Induction
- Air Horns
- 19.7 Cu. Ft. Whirlpool® Refrigerator
- Prep for Two-Piece Washer and Dryer
- Fireplace in Living Area*
- Chinook Dual Loop Heat with continuous hot water
Optional
- Splendide® Two-Piece Stacked Washer and Dryer
- Central Vacuum with Tool Kit
- Dishwasher in a Drawer with Stainless Steel Front Below Cooktop
- Electrical Prep for Freezer without Tray
- Beverage Center Dual Zone
- Fireplace
- LP Cooktop, 22 Gallon LP Tank with Six 6-Volt Batteries
Interior
Standard
- Designer Feature Ceiling
- Tile Floor in Kitchen, Bathroom and Living Areas
- Carpeting on Slideout Floors
- MCD Window Shades
- MCD Power Shades at Windshield and Manual Shades on Driver/Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Decorative Wall Art
- Inlayed Three Panel Design Interior Passage Doors
- Interior Assist Handle at Main Entry Door
- Power Stepwell Cover
- Fitted with Round Corner Non-Quilted Bedspread with Accent Pillows
- Removable Transport Pads for Under Slideout Rollers
- Wastebasket in Kitchen Base Under Sink
Optional
- Safe Located in Bedroom Wardrobe
Entertainment
Audio & Video
Standard
- Samsung® LED 4K TV in Living and Bedroom Areas* (TV Sizes Vary Per Floor Plan)
- 50" Samsung® LED 4K TV on Televator in Living Area*
- Dash Radio with Harman/JBL 180w Sound System and Subwoofer
- Xite Dash Radio with Apple CarPlay®, 9" Dual Monitors with Nav-N-Go Navigation System
- Bose® Soundbar Sound System
- Bluetooth Microphone for Dash Radio
- Rear-View Color Monitor System with Audio
- Side-View Cameras Displayed on Rear-View Monitor Screen
- Winegard Digital Crank-up TV Antenna
- Satellite Dish Prep on Roof
- Two Bedroom Radio Speakers
- TV Jack and 110-Volt Recept in Door Side Exterior Storage Compartment
- High-Definition Component Wiring
- 10 Bc Fire Extinguisher, Smoke Detectors, Propane and Carbon Monoxide Detector
Optional
- SiriusXM® Satellite Capability with Antenna (Does not include monthly subscription)*
- 43" Samsung® 4K LED TV in Front Overhead
- Exterior Entertainment Center in Sidewall with 32" Samsung® 4K LED TV and Bose® Soundbar
- Exterior Entertainment Center in Sidewall with 43" Samsung® 4K LED TV and Bose® Soundbar
- Exterior Entertainment Center in Storage Compartment with 43" Samsung® LED TV and Bose® Soundbar
- Xite HD 360 Camera System*
- Extra Monitor on Passenger Side
- Starlink Internet System
- Universal Remote Control
- Universal Toll Module
- Prep for Ground Tripod Satellite Dish on Off Door Side with A/B Switch
- Two 19" Skyworth Monitors at Each Bunk*
- WiFiRanger Denali/Spruce LTE
- WiFi System Everest with Aspen Interior Router
- Winegard Automatic Dome Satellite Dish-for Std/HD, DIRECTV Std and Bell Canada
- Winegard Automatic Open Face Satellite Dish-for HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-for DIRECTV Std/HD
- Winegard In-Motion Dome Satellite Dish-for Std/HD, DIRECTV Std and Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
*Check with dealership on floorplan availability
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
Save your favorite RVs as you browse. Begin with this one!
-
Relationship Builder
Our salesman, Mark Major, went above and beyond to ensure that we understood the coaches we were comparing and I have no doubt that we will have a long and lasting relationship with Mark and Dylans. -
Highly Recommend
Just had our RV serviced. The experience was the best from the time we walked in the building. Job was completed when promised. The repairs were explained by our tech. This is definitely a top notch service center they care about the customer regardless of where you purchased your unit. They are always -
Wow!
Wow if u have not made it to the RV show....HURRY DYLANS has by far the BEST in show!!!!....and after a year they still know who I am....wow service and sales.....best combo in NJ....This is my 8th RV....this is the only place to buy an RV
Loading
Dylan's RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @856-228-0090 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.
