Used 2020 Dynamax DX3 37TS

Motor Home Super C - Diesel

Stock #88028R

Sewell, NJ

Acres of New and Used RVs - Find Your Away Today at Dylans RV Center

1 of 53

+53

Specifications

Sleeps	6	Slides	3
Length	39 ft 2 in	Ext Width	8 ft 5 in
Ext Height	12 ft 9 in	Hitch Weight	20000 lbs
GVWR	33000 lbs	Fresh Water Capacity	94 gals
Grey Water Capacity	52 gals	Black Water Capacity	52 gals
Tire Size	22.5"	Fuel Type	Diesel
Miles	12275	Engine	Cummins 8.9L ISL Turbo Diesel
Chassis	Freightliner M2 106	Horsepower	350 hp
Fuel Capacity	100 gals	Wheelbase	268 in
Number Of Bunks	1	Torque	1000 ft-lb
Refrigerator Type	Residential with Ice Maker	Refrigerator Size	16 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	12000 lbs
Axle Weight Rear	21000 lbs	LP Tank Capacity	20.3 gals
Water Heater Type	Aqua Hot 400D Diesel	AC BTU	30000 btu
TV Info	LR 40" LED TV, BR 32" LED TV, Ext. 32" LED TV	Awning Info	18' Armless with LED Lights and Wind Sensor
Washer/Dryer Available	Yes	Gross Combined Weight	54000 lbs
Shower Type	Radius	Electrical Service	50 amp
VIN	1FVACXFE3KHKU2233

Features

Standard Features (2020)

Chassis

Freightliner® M2 106 Chassis (33,000-lbs. GVWR/54,000-lbs. GCWR)
Cummins® 8.9L ISL Turbo Diesel Engine(350hp/1,000 lb.-ft. of Torque)
Allison® 3200 TRV Six-Speed Automatic Transmission
100-Gallon Fuel Capacity (Twin 50-Gallon Aluminum Fuel Tanks)
6-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (20,000 Tow lbs./2,000 Tongue lbs.) with 7-Way Round Tow Connection
Brake Controller
Dual-Stage C-Brake by Jacobs® with High/Off/Low Braking Dash Switch
Locking Differential
Airliner® 21,000-lb. Rear Suspension
Manual Air Suspension Dump Valve Switch on the Dash
12,000-lb. Front Axle
23,000-lb. Quiet Ride Rear Axle
275-Amp Alternator
Quick Disconnect Fitting with Tire Inflation Kit
Air Brakes with 4-Wheel ABS
Bilstein® Gas-Charged Front Shock Absorbers
Upgraded Front Sway Bar with Clevis-Style Bushing
Equiflo™ Inboard Fuel System (Dual Supply – Dual Return)
Fuel Filter/Water Separator with Primer Pump
Engine Block Heater
Steel-Reinforced, Aluminum Cab
Chrome Grille and Air Intake Grille
Front and Rear Tires: Michelin® XZE2 275/80R22.5 (14 Ply Radials)
Single Front Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
Dual Rear Wheels: Alcoa® Aluminum (22.5” x 8.25”) *Outside Rims are Polished
Valve Extensions
4.56 Rear Axle Ratio
Daytime Running Lights
Tinted Door Glass and Operating Wing Windows
Chassis Battery Shut Off Switch in Cab
Leatherette Driver and Passenger Air Ride Seats with Swivel Bases
Backup and Side View Cameras
Kenwood® 7” Touch Screen Dash Infotainment System with AM/FM, Bluetooth®, Sirius/XM® (Tuner and antenna), Apple® CarPlay™/Android® Auto™ Functionality
CB Radio with Left Hand Mirror Mounted Antenna
Air Horn
12V Accessory Ports
One Valve Parking Brake System with Warning Indicator
Engine After-Treatment Device, Automatic Over-the-Road Regeneration, and Dash-Mounted Regeneration Switch
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Marker Lights with Separate Interrupter Switch
Low Air Pressure Light and Buzzer
Cruise Control
Adjustable Steering Column
18” Leather-Wrapped Steering Wheel
Hydrographic Woodgrain Cab Accents
Power and Heated Exterior Mirrors
Power Windows and Locks
3-Point Seat Belts
Dual Reading Lights
Two (2) Cup Holders in Dash

Construction

2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Gel-Coat Fiberglass Walls
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, Rear Cap, and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dual-Pane, Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Roof-Mounted, Integrated Armless Patio Awning with LED Lighting and Wind Sensor
Aluminum-Wrapped Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch, Dark-Tinted, Frameless Window, and Integrated Shade
Remote Locking System for Entry Door
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps
Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights
Polished Stainless Steel Cab Step Treads
Chrome Exhaust Tip

Interior

Rigid Core LV Tile with Soft Silence Acoustical Pad
Deluxe Carpet with Pad in Select Living Area Slide Rooms
Solid Surface Entry with Non-Skid Rubber Steps
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Booth Dinette
Coordinating Fabric Window Treatments and Lambrequins with Hardwood Trim and Crown
Day/Night Roller Shades
Hardwood Raised Panel Cabinetry with Five-Piece Drawer Fronts
Hardwood Shaker-Style Passage Doors
Full Extension, Soft-Closing Drawer Guides (Where applicable)
Hidden Hinges
40” Samsung® LED TV (Living area)
JBL® Sound Bar and Smart Blu-Ray® Home Theater System (Living area)
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

16 cu. ft. Residential Refrigerator with Ice Maker (N/A – 37RB)
22 cu. ft. Residential Refrigerator with Ice Maker (37RB)
Sealed Gas Range with Solid Surface Covers
Convection Microwave Oven
Solid Surface Countertops with Hand-Laid Tile Backsplash
Double-Bowl Stainless Steel Sink with Solid Surface Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover and Remote

Bedroom

King Bed with Gel-Infused Memory Foam Mattress (72” x 80” – Nominal Size)
Under-Bed Storage (Floor Plan Specific)
Deluxe Padded Headboard
Designer Bedding Package
32” Samsung® LED TV with Sound Bar
Cedar-Lined Wardrobe
Nightstands with Solid Surface Countertops
LED Reading Lights
USB Charging Ports
Bunk Bed Mattresses (28” x 76”) and Privacy Partition (37BH)
Two Bunk CD/DVD Players with Monitors (37BH)

Bathroom

Granite-Textured Fiberglass Shower
Shower Skylight
Glass Shower Door
Oxygenics Body Spa® RV Shower Head
Solid Surface Countertop
Under-Mount Sink with Residential Brushed Nickel Faucet
Porcelain Foot-Flush Toilet (N/A – 37RB)
Porcelain Electronic-Flush Macerator Toilets (37RB)
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Dual 12V Group 4D AGM Auxiliary Batteries
Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service with Power Cord Reel
2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip
Aqua-Hot® 400D Diesel System
Zoned Thermostatically-Controlled Heating and Cooling
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Interior Monitor Panel with LPG/Tank/Battery Readout
Exterior Shower in Service Bay
Power Water Hose Reel in Service Bay
Exterior GFCI Receptacle
Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
Cable TV/Satellite Hookup in Service Bay
Thetford® Sani-Con Turbo Macerator System
Black Tank Flush
Utility Compartment Heated by Aqua-Hot® System
Enclosed Holding Tanks Heated by Aqua-Hot® System
Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
Carbon-Monoxide, LP Gas, and Smoke Detectors
Fire Extinguisher
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)

Options

Solar Panels - Two 100 Watt with 30-Amp Controller
Cab-Over Bed with LED TV (Extended Front Cap)
Rear “DYNAMAX” Rock Guard
Black Out Package (Side Mirrors, Rock Guard, Wheels, Headlight Bezels, Exterior Grab Handle Trim, Custom Grill and Vent)
Chrome Appearance Package (Custom Grill and Vent, Dual Hadley® Air Horns, Rock Guard, and Baggage Door Handles)
12 cu. ft. 2-Way Refrigerator with Ice Maker in place of Standard Refrigerator and Side Pantry
Washer/Dryer
Dual Reclining Theater Seats in Place of Sofa
All-Electric Package: Induction Range with Induction Pan Set and Exterior Storage Compartment in Place of LP Tank
Entertainment Center with 50” LED TV and Fireplace in Place of Loveseat (37BH and 37TS Only)
Winegard® Trav’ler Stationary Triple LNB Satellite Dish (DirecTV® SD-HD)
Mobileye® Collision Avoidance System
Tire Pressure Monitoring System
JBL® Premium Cab Sound System - JBL Full Range/Tweeter Coaxial Speakers, Dual Voice Coil Subwoofer, and a High-Efficiency, High-Performing, 4-Channel DSP Amplifier, All “Tuned” Specifically for the Freightliner M2
In-Dash Garmin® RV Navigation System

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

1st Class Program
Never having owned an RV of any kind, we visited Dylan's in Jan '20, left w/an executed Agreement of Sale, and took delivery of our new Kountry Star in April. We revisited in June w/minor punch list items and to address minor loose ends that were a result of COVID/production related issues. Our experience

Michael from Bethany Beach, DE
Great to buy from
We purchased a Winnebago RV from Dylan’s last spring. Our salesperson Mark Major was really helpful and professional. This was our first RV and Mark spent a lot of time patiently educating us. We’ve taken our RV on a few trips now. Everything is working well - we love it.

Scott from Severna Park, MD
A++ Experience
Jim was fantastic. Jim's knowledge, willingness to share, patience for a all of our questions was a pleasure. This is our first RV purchase and it was wonderful. I am very grateful for having the opportunity to work with Dylans and their team. I would highly recommend Dylan's RV center. This is a dream

Jane from Red Hook, NY

We are here to help, call us at
856-228-0090 or Contact Us

We are here to help!

856-228-0090
Contact Us
$ Get Internet Price $

Dylan's RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @856-228-0090 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2020 Dynamax DX3 37TS

Why Do We Ask You For This Information?

Quick Links

Our Hours

RV Sales

RV Service

Used 2020 Dynamax DX3 37TS

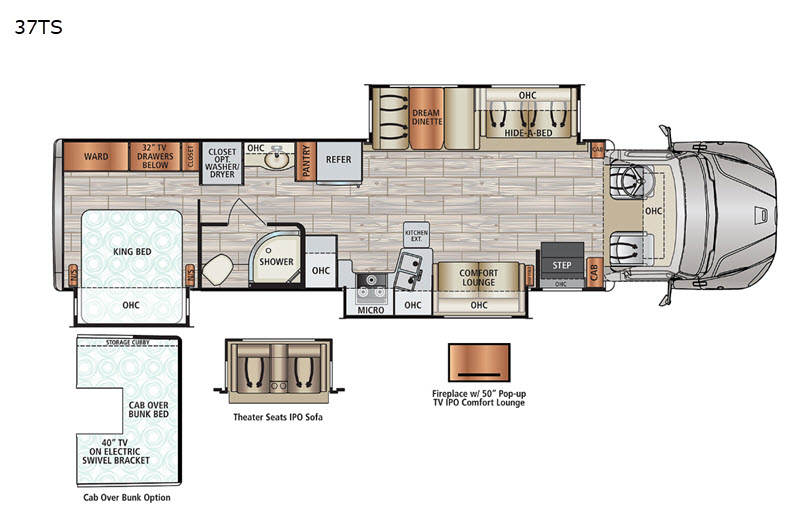

37TS Floorplan
